Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Cylinder
6
Parts Diagram
Parts Catalog
Headlight
by
Oil filter
Cylinder
1
2
3
3
4
5
6
7
8
1
Cylinder base gasket 0,6
AP8580150
Not Available
1
Cylinder base gasket 0,8
AP8580151
Not Available
1
Cylinder base gasket 0,4
AP8580149
Not Available
2
Piston pin
AP8580001
Not Available
2
Piston pin
AP8580177
Not Available
3
Snap ring
AP8580216
Not Available
4
Segment
485779
£21,97 Unit Price incl. VAT
4
Ring d.72x1,5
AP8580244
Not Available
5
Segment racleur d'huile
486362
£39,46 Unit Price incl. VAT
5
Oil scraper ring d.72x1
AP8580002
Not Available
6
Oil scraper ring d.72x2,5
AP8580003
Not Available
6
Segment
485914
£20,21 Unit Price incl. VAT
7
Cylinder with piston
848134
Not Available
7
Cylinder with piston
843291
Not Available
8
Piston + piston pin Cat.D
8481330004
Not Available
8
Piston + piston pin Cat.B
8481330002
Not Available
8
Piston assy cat3
8432900003
Not Available
8
Piston assy cat2
8432900002
Not Available
8
Piston-wrist pin assy. Cat.A
8481330001
Not Available
8
Piston assy cat4
8432900004
Not Available
8
Piston + piston pin Cat.C
8481330003
Not Available
8
Piston assy
8432900001
Not Available

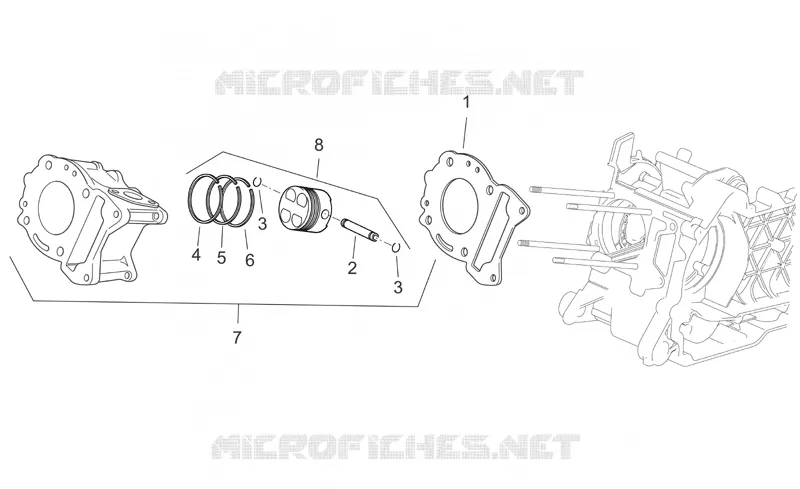

Find the detailed Cylinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
