Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Front body - Front mudguard
6
Parts Diagram
Parts Catalog
Camshaft
by
Electrical system I
Front body - Front mudguard
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
1
Upper front mudguard, grey
AP8156314
Not Available
1
Upper front mudguard, blue
AP8156312
Not Available
1
Upper front mudguard, red
AP8156306
Not Available
2
Front shield lockup
AP8139605
Not Available
3
LH hub cover, grey
AP8156132
Not Available
4
RH hub cover, grey
AP8156131
Not Available
5
Fixation Gard-b AV;
AP8134489
£36,32 Unit Price incl. VAT
6
Caoutchouc avec insert
AP8120531
£6,84 Unit Price incl. VAT
7
Clip M6
AP8102376
Not Available
8
Cable-guide
AP8144240
Not Available
9
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
10
Caoutchouc
AP8120001
£5,32 Unit Price incl. VAT
11
Vis
AP8150426
£1,27 Unit Price incl. VAT
12
Rondelle
AP8150017
£1,88 Unit Price incl. VAT
13
Hex socket screw M8x40
AP8150171
Not Available
14
Lower front mudguard, blue
AP8156313
Not Available
14
Lower front mudguard, grey
AP8156315
Not Available
14
Bottom front mudguard, red
AP8156307
Not Available

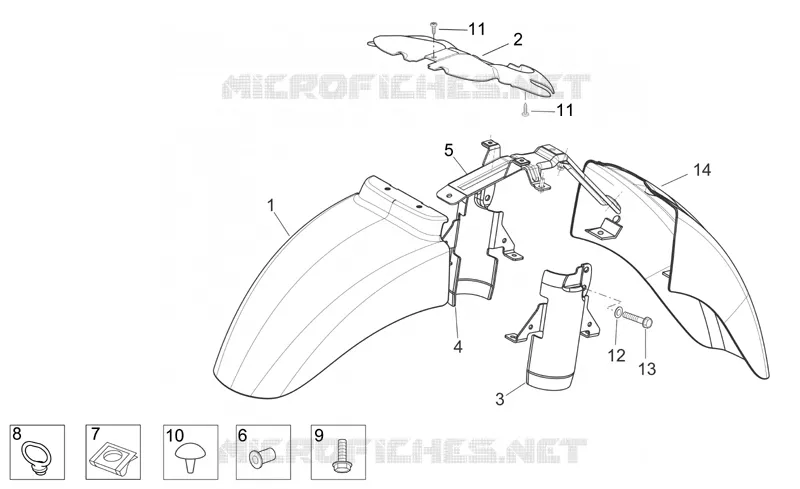

Find the detailed Front body - Front mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
