Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Front body - Front cover
by
Exhaust unit
Fuel tank
1
2
3
4
5
6
7
7
7
7
7
8
9
10
11
11
11
12
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
1
Fuel tank
AP8179865
Not Available
2
Fuel pump
AP8176041
Not Available
3
Caoutchouc collecte essence;
AP8144187
£12,23 Unit Price incl. VAT
4
Fuel filler cap
AP8201757
Not Available
5
Fuel pipe 5,5x10
AP8120952
Not Available
5
Tube dép.
AP8134815
£44,05 Unit Price incl. VAT
6
Fuel filter
AP8104406
Not Available
7
Collier
AP8101595
£3,97 Unit Price incl. VAT
8
Clip M6
AP8102376
Not Available
9
"Raccord en ""T"""
AP8144303
£16,02 Unit Price incl. VAT
10
Fuel level sensor
AP8224715
Not Available
11
Vis bride
AP8152272
£1,88 Unit Price incl. VAT
12
Fuel pipe 5,5x10
AP8120952
Not Available
13
Bac essence;
AP8258692
£14,35 Unit Price incl. VAT
14
Support;
AP8258693
£14,84 Unit Price incl. VAT
15
Eponge adhésive;
AP8117041
£32,51 Unit Price incl. VAT
16
Soupape de retenue
AP8104251
£44,38 Unit Price incl. VAT
17
Raccord complet;
AP8104071
£26,05 Unit Price incl. VAT
18
Collier
AP8101573
£2,95 Unit Price incl. VAT
19
Collier clic
AP8101770
£12,56 Unit Price incl. VAT
20
Raccord à deux voies
AP8101944
£5,48 Unit Price incl. VAT
21
TUYAU
AP8220402
£28,99 Unit Price incl. VAT
22
Collier
AP8102378
£4,01 Unit Price incl. VAT
23
Caoutchouc support relais
AP8220546
£3,74 Unit Price incl. VAT
24
Collier
AP8102811
£2,51 Unit Price incl. VAT

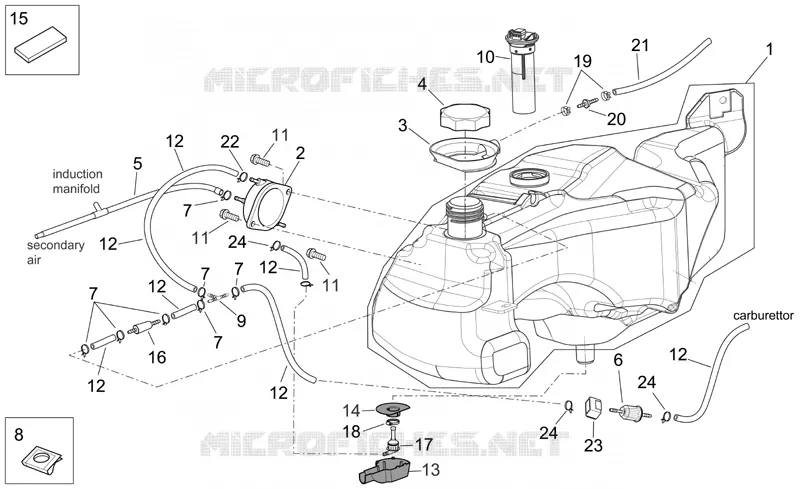

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
