Parts Catalog
LH Controls
6
Parts Diagram
Parts Catalog
Marzocchi front fork - Hubs, sleeves
by
Cylinder head
LH Controls
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Upper LH light control cover
851810
Not Available
2
Couv.dév. feux inf.G
851808
£6,12 Unit Price incl. VAT
3
Couvercle déviateur feux G
851806
£11,87 Unit Price incl. VAT
4
Vis
AP8152270
£1,88 Unit Price incl. VAT
5
Brake lever
AP8118641
Not Available
5
Levier frein
AP8133809
£53,33 Unit Price incl. VAT
6
Pivot levier frein
AP8213584
£13,28 Unit Price incl. VAT
6
Vis levier
AP8125757
£12,31 Unit Price incl. VAT
7
Ecrou
AP8213298
£17,00 Unit Price incl. VAT
7
Écrou
AP8213585
£7,48 Unit Price incl. VAT
8
Cavalier levier frein
AP8113637
£33,77 Unit Price incl. VAT
8
Cavalier levier frein
AP8213586
£33,77 Unit Price incl. VAT
9
Vis calotte
AP8213582
£12,65 Unit Price incl. VAT
9
Vis calotte
AP8213299
£3,38 Unit Price incl. VAT
10
stop Button
AP8127305
Not Available
11
Maît.cyl. frein AR;
AP8133558
£274,58 Unit Price incl. VAT
11
Rear master cylinder
AP8133733
Not Available
12
Handgrip pair, black
AP8118657
Not Available
13
Cover
AP8127899
Not Available
14
Horn button
AP8127893
Not Available
15
Turn indic.lightbutton
AP8127906
Not Available
16
Switch HI/LO
AP8127891
Not Available
17
LH lights selector cable
852334
Not Available

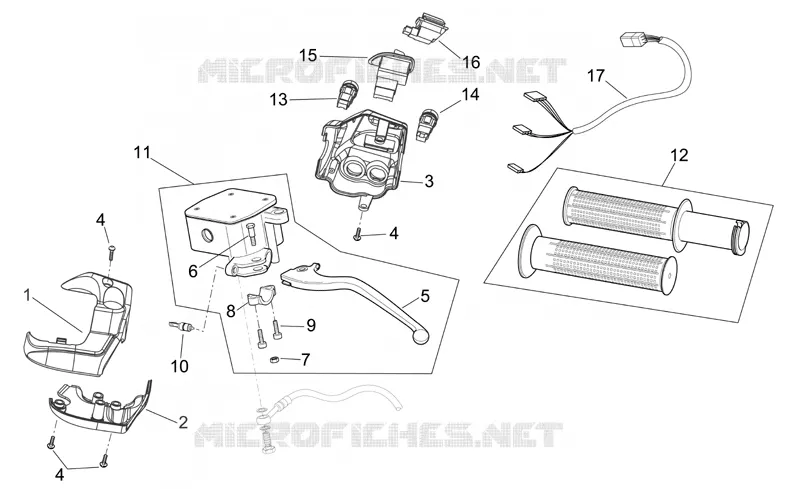

Find the detailed LH Controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
