Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Secondary air
6
Parts Diagram
Parts Catalog
Kaifa front fork - Hubs, sleeves
by
Central body I
Secondary air
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
1
Screw
AP8551060
Not Available
2
Hose clamp
AP8144579
Not Available
3
Gasket
AP8570089
Not Available
4
SAS valve
AP8580127
Not Available
5
screw
AP8580063
Not Available
6
Gasket
AP8580192
Not Available
7
Cover
AP8580191
Not Available
8
Screw w/ flange
AP8550556
Not Available
9
Gasket
AP8580194
Not Available
10
Hose union
AP8580195
Not Available
11
pipe
AP8580196
Not Available
12
Filter
AP8580193
Not Available
13
Cover
AP8580214
Not Available
14
Soundproofing material
AP8580215
Not Available
15
Plain washer
AP8580059
Not Available
16
Collier serr. Tube
AP8102998
£2,93 Unit Price incl. VAT
17
Intake pipe
AP8577091
Not Available

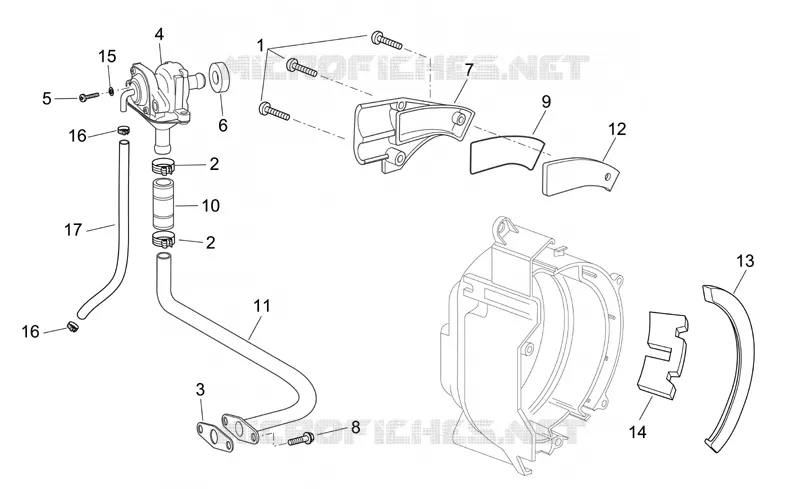

Find the detailed Secondary air MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
