Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Starter motor
6
Parts Diagram
Parts Catalog
Cooling system
by
Rear caliper
Starter motor
1
2
3
4
5
6
7
7
8
8
9
10
10
10
11
12
13
13
14
15
15
16
16
17
18
18
19
20
20
20
21
22
1
Cover
843645
Not Available
1
Cover
843440
Not Available
2
screw
AP8551014
Not Available
3
Variator cover
8487465
Not Available
4
Bush
AP8550347
Not Available
5
Bearing
AP8550580
Not Available
6
Snap ring
AP8550578
Not Available
7
Pin d.9,5 h=15
AP8550107
Not Available
8
Screw w/ flange M6x30
AP8550558
Not Available
9
Air deflector
AP8176272
Not Available
9
Air deflector
AP8580245
Not Available
10
screw
AP8176271
Not Available
11
Axe av.
AP8144547
£5,75 Unit Price incl. VAT
12
Rear slide piece
AP8178010
Not Available
13
Rondelle pour arbres
AP8150450
£2,20 Unit Price incl. VAT
14
Couvre carter
AP8168599
£43,80 Unit Price incl. VAT
15
Joint;
AP8102504
£2,52 Unit Price incl. VAT
16
Rondelle
AP8150014
£1,27 Unit Price incl. VAT
17
Collier
AP8120657
£1,88 Unit Price incl. VAT
18
Douille
AP8121167
£4,46 Unit Price incl. VAT
19
"Douille en ""T"""
AP8121725
£1,88 Unit Price incl. VAT
20
Screw
AP8150314
Not Available
21
Filter
AP8590033
Not Available
21
Filter
AP8577006
Not Available
22
Self-tap screw 3x20
AP8580061
Not Available

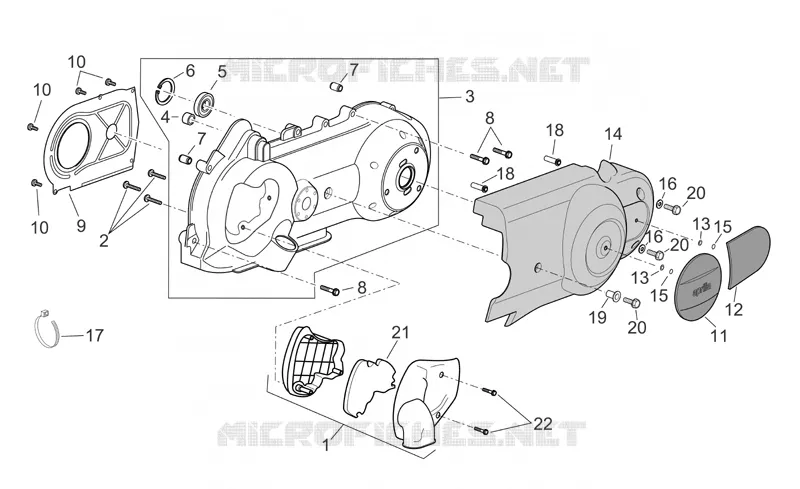

Find the detailed Starter motor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
