Parts Catalog
Rear footrests
6
Parts Diagram
Parts Catalog
Oil radiator
by
Rear wheel II
Rear footrests
1
2
3
3
4
4
5
5
5
6
6
7
7
8
8
9
9
10
11
12
13
1
Rear footrest, RH
GU32442310
Not Available
2
Support rubber part
GU32443210
£10,92 Unit Price incl. VAT
3
Plate
GU32441210
£10,54 Unit Price incl. VAT
4
Pin
AP8121567
£19,96 Unit Price incl. VAT
5
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
6
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
7
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
9
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
10
Rear footrest, LH
GU32442710
Not Available
11
Support rubber part
GU32443211
£10,92 Unit Price incl. VAT
12
LH rear footrest guard
898169
£94,14 Unit Price incl. VAT
13
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT

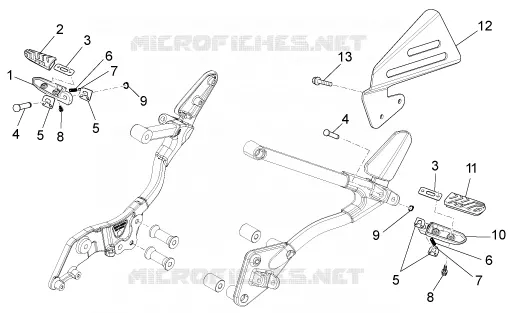

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
