Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
by
RH cylinder timing system (bowl)
Front wheel
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
1
Front wheel 2,50x19"
884168
£432,64 Unit Price incl. VAT
1
Front wheel 2,50x19"
884093
Not Available
1
Front wheel 2,50x19"
883009
£496,09 Unit Price incl. VAT
2
Ball bearing 25x47x12
AP8125777
£10,52 Unit Price incl. VAT
3
Gasket ring 30x47x7
AP8125773
£2,63 Unit Price incl. VAT
4
Spacer
978516
£42,07 Unit Price incl. VAT
5
Spoke
887085
£9,29 Unit Price incl. VAT
5
Spoke
978864
£7,03 Unit Price incl. VAT
6
Nipples L=34
978810
£13,21 Unit Price incl. VAT
7
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
8
Snap ring
978811
£2,47 Unit Price incl. VAT
9
O-ring OR2025
GU90706061
£2,47 Unit Price incl. VAT
10
Fairlead
894704
£13,38 Unit Price incl. VAT
11
Front brake disc SX
896012
Not Available
11
Front brake disc SX
B044280
Not Available
12
Front brake disc DX
896011
Not Available
12
RH front brake disc
B044279
Not Available
13
Phonic wheel
AP8128189
£104,45 Unit Price incl. VAT
14
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
15
Front wheel spindle
978030
£107,18 Unit Price incl. VAT
16
Nut
GU01612190
£10,82 Unit Price incl. VAT
17
Spacer
GU06616300
£13,40 Unit Price incl. VAT
18
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
19
Sensor ABS
859792
Not Available
20
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
21
Fairlead
859777
£8,06 Unit Price incl. VAT
22
Screw M4x6
AP8201749
£1,00 Unit Price incl. VAT
23
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
24
Front tyre 110/80 R19
886311
Not Available

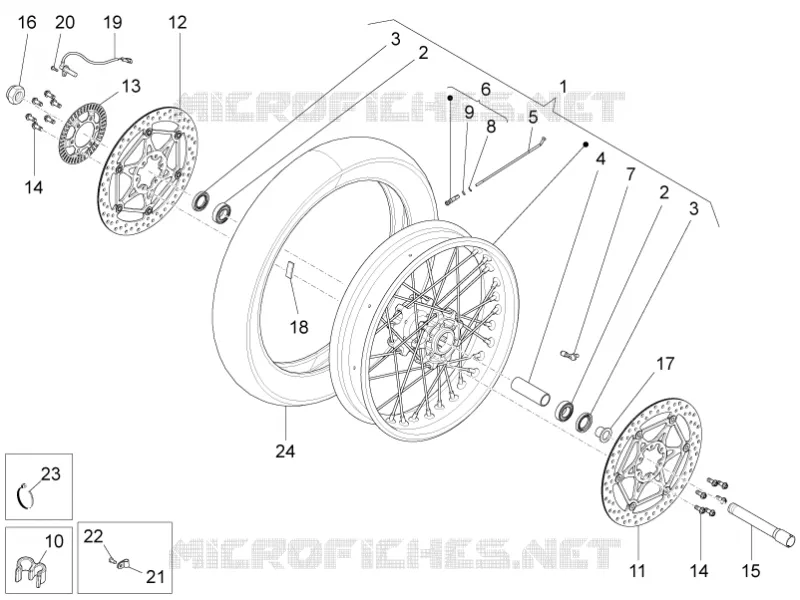

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
