Engine displacement
1200
2
Model
STELVIO
3
Year
2016
4
Trim
Stelvio 8V STD - NTX
5
Parts Catalog
Blow-by system
6
Parts Diagram
Parts Catalog
Front mud.-Pillar
by
Electrical system I
Blow-by system
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
15
15
15
15
16
17
1
Housing
886098
£153,65 Unit Price incl. VAT
2
Plate
GU06412300
£14,28 Unit Price incl. VAT
3
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
4
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
5
RH pipe
883034
£70,22 Unit Price incl. VAT
6
LH pipe
883035
£53,15 Unit Price incl. VAT
7
White hose clip D17,5x8
AP8102349
£10,54 Unit Price incl. VAT
8
Pipe
883036
£78,88 Unit Price incl. VAT
9
Reduction
GU01161331
£18,25 Unit Price incl. VAT
10
Gasket
GU01154230
£2,34 Unit Price incl. VAT
11
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
12
Breather pipe
GU00823955080
£35,99 Unit Price incl. VAT
13
Rubber spacer
AP8220162
£5,44 Unit Price incl. VAT
14
White hose clip d.13x6
AP8102764
£3,25 Unit Price incl. VAT
15
Hose clip D.15,5x6,6
AP8101586
£3,97 Unit Price incl. VAT
16
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
17
2-way union
886339
£5,27 Unit Price incl. VAT

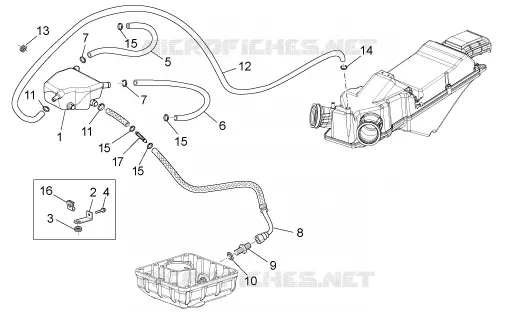

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
