Engine displacement
1000
2
Model
SP
3
Year
1992
4
Trim
SP III 1000
5
Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Bevel gear
by
Windshield
Dashboard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
Dashboard
GU29766260
Not Available
2
plate
GU29764160
Not Available
3
Speedometer
GU29761560
Not Available
4
Tachometer MOTOPLAT
GU29767260
Not Available
5
Clock assy.
GU29783061001
Not Available
6
Voltmeter
GU29784960
Not Available
7
Lampholder
GU17760650
Not Available
8
Lamp 12V-3W
GU17762150
Not Available
9
Gear 90°
GU17768360
£282,60 Unit Price incl. VAT
10
Sheath
GU17762200
Not Available
11
Speedometer transmission
GU12760400
£42,32 Unit Price incl. VAT
12
Gear Z5/11
GU14762510
Not Available
13
Pinion Z=5
GU12763300
Not Available
14
Chain ring
GU14766110
Not Available
15
Turn indicator switch
GU28745761
Not Available
16
Blinker indicator light holder
GU65758970
£5,20 Unit Price incl. VAT
17
Lamp
GU93450140
Not Available
18
Lampholder
GU19768680
£8,40 Unit Price incl. VAT
19
Panel with lenses
GU29781160
Not Available
20
Indicator light box
GU27766985
Not Available
21
Main switch - steering lock
GU30782511
Not Available
21
Main switch - steering lock
GU30782510
Not Available
22
screw
GU98230825
£7,98 Unit Price incl. VAT
23
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
24
Commutator wiring
GU29731460
Not Available
25
screw
GU98326021
Not Available
26
Washer
GU95000206
£1,02 Unit Price incl. VAT
27
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
28
Commutator support
GU30782310
Not Available
28
Commutator support
GU30782311
Not Available
29
Shear rivet
GU97260425
£20,62 Unit Price incl. VAT
29
Shear rivet
GU97260440
Not Available
30
Washer
GU95000208
£5,23 Unit Price incl. VAT
31
screw
GU97260435
£13,40 Unit Price incl. VAT
31
screw
GU98620435
Not Available
32
Washer
GU95004208
£0,70 Unit Price incl. VAT
33
Fixing pin
GU30753310
Not Available
34
Cover
GU30783611
Not Available

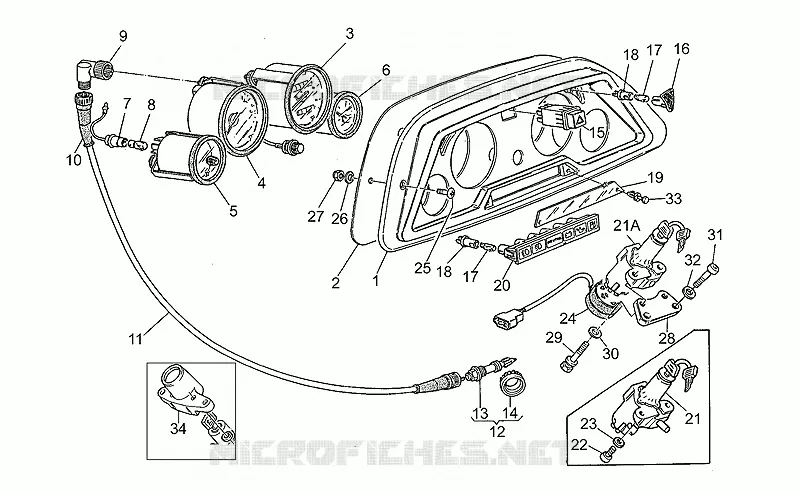

Find the detailed Dashboard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
