1
Engine displacement
1000
2
Model
SP
3
Year
1992
4
Trim
SP III 1000
5
Parts Catalog
Lower fairing
6
Parts Diagram
Parts Catalog
Saddlebags, pair
by
Body
Lower fairing
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
23
24
25
26
26
27
27
28
1
RH Fairing section
GU30570312
Not Available
1
RH Fairing section
GU305703101
Not Available
1
RH Fairing section
GU30570311
Not Available
2
RH container
GU30576210
Not Available
3
Rubber spacer
GU91551085
Not Available
4
screw
GU99210316
£1,26 Unit Price incl. VAT
5
Gasket
GU00823932085
£9,79 Unit Price incl. VAT
6
LH Fairing section
GU30570412
Not Available
6
LH Fairing section
GU305704101
£844,76 Unit Price incl. VAT
6
LH Fairing section
GU30570411
Not Available
7
LH container
GU30576310
Not Available
8
Guard
GU30941710
Not Available
9
RH clamp
GU30579110
Not Available
10
RH clamp
GU30579210
Not Available
11
Hex socket screw
GU98610335
£1,26 Unit Price incl. VAT
12
Washer
GU95001206
Not Available
13
Spacer
GU91180605
£10,21 Unit Price incl. VAT
14
Pillar
GU30570512
Not Available
14
Pillar
GU305705101
Not Available
14
Pillar
GU30570511
Not Available
15
Plate
GU28579160
Not Available
16
screw
GU98250625
£0,96 Unit Price incl. VAT
17
Spacer
GU90716067
Not Available
18
screw
GU98250618
£1,00 Unit Price incl. VAT
19
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
20
Screw complete
GU97250616
£15,70 Unit Price incl. VAT
21
Hex socket screw M6x25
GU98230625
£4,78 Unit Price incl. VAT
22
Washer 6,4x10x0,7
GU14217901
Not Available
23
Washer
GU29577860
Not Available
24
Washer
GU95100123
£1,49 Unit Price incl. VAT
25
Cap nut
GU92781065
Not Available
26
Washer
GU18577850
£1,56 Unit Price incl. VAT
27
O-ring
GU45212400
Not Available
28
Captive nut
GU92660601
£1,58 Unit Price incl. VAT

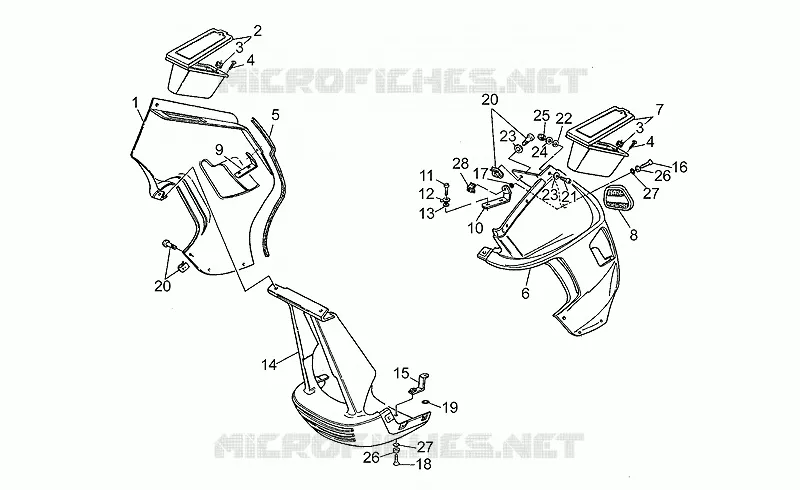

Find the detailed Lower fairing MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SP III 1000

Battery

Battery

for SP III 1000 from 1992

Saddlebags, pair

Saddlebags, pair

for SP III 1000 from 1992

Lower fairing

Lower fairing

for SP III 1000 from 1992

Body

Body

for SP III 1000 from 1992

Bevel gear

Bevel gear

for SP III 1000 from 1992

Dashboard

Dashboard

for SP III 1000 from 1992

Windshield

Windshield

for SP III 1000 from 1992

Headlight-Horn

Headlight-Horn

for SP III 1000 from 1992

Taillight

Taillight

for SP III 1000 from 1992

Air filter

Air filter

for SP III 1000 from 1992

Rear suspension-fork

Rear suspension-fork

for SP III 1000 from 1992

Front fork

Front fork

for SP III 1000 from 1992

Swing arm

Swing arm

for SP III 1000 from 1992

Rear brake m.cyl. mod.group

Rear brake m.cyl. mod.group

for SP III 1000 from 1992

Electrical system

Electrical system

for SP III 1000 from 1992

RH Front brake system

RH Front brake system

for SP III 1000 from 1992

Front LH/rear brake system

Front LH/rear brake system

for SP III 1000 from 1992

Handlebar - Controls

Handlebar - Controls

for SP III 1000 from 1992

Front/rear mudguards

Front/rear mudguards

for SP III 1000 from 1992

Footrests-Stands

Footrests-Stands

for SP III 1000 from 1992

Rear master cylinder

Rear master cylinder

for SP III 1000 from 1992

Front wheel

Front wheel

for SP III 1000 from 1992

Rear wheel

Rear wheel

for SP III 1000 from 1992

Frame

Frame

for SP III 1000 from 1992

Exhaust unit

Exhaust unit

for SP III 1000 from 1992

Gear lever

Gear lever

for SP III 1000 from 1992

Drive shaft

Drive shaft

for SP III 1000 from 1992

Driven shaft

Driven shaft

for SP III 1000 from 1992

Gear box

Gear box

for SP III 1000 from 1992

Carburettors

Carburettors

for SP III 1000 from 1992

Crankcase

Crankcase

for SP III 1000 from 1992

Cylinder - Head - Piston

Cylinder - Head - Piston

for SP III 1000 from 1992

Clutch

Clutch

for SP III 1000 from 1992

Valeo starter motor

Valeo starter motor

for SP III 1000 from 1992

Oil pump

Oil pump

for SP III 1000 from 1992

Transmission cage

Transmission cage

for SP III 1000 from 1992

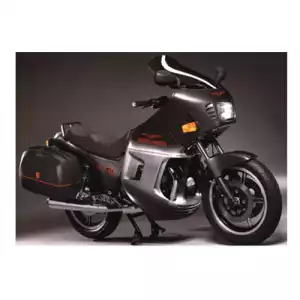

MOTO GUZZI LAVERDA SCARABEO SP III 1000 1992
