Engine displacement
1000
2
Model
SP
3
Year
1992
4
Trim
SP III 1000
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Rear brake m.cyl. mod.group
by
RH Front brake system
Electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
1
Electrical system
GU30747110
£260,81 Unit Price incl. VAT
2
Cap
GU12717600
£2,22 Unit Price incl. VAT
3
Dashboard cable
GU30747210
£31,69 Unit Price incl. VAT
4
Alternator-regulator wiring
GU29725850
Not Available
5
Battery-alternator cable
GU29726450
£5,90 Unit Price incl. VAT
6
Cap
GU23707100
Not Available
7
Wire
GU14748450
Not Available
8
Cap
GU19707100
£12,65 Unit Price incl. VAT
9
Ground-battery lead
GU28747960
£52,76 Unit Price incl. VAT
10
Siren relay
GU28732560
Not Available
11
Starting relay
GU30732510
£19,01 Unit Price incl. VAT
12
Flasher unit
GU17750520
Not Available
13
screw
GU98202516
Not Available
14
Washer
GU95004205
£1,13 Unit Price incl. VAT
15
Captive nut
GU92660501
£0,96 Unit Price incl. VAT
16
Fuse holder box
GU27743050
Not Available
17
Fuse 15A
GU28742560
Not Available
18
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
19
Taillight wiring harn.
GU30747310
Not Available
20
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
21
Rubber spacer
GU19007700
£4,44 Unit Price incl. VAT
22
Fuel cable
GU30759710
Not Available
23
H.T. wiring
GU29722170
£55,25 Unit Price incl. VAT
24
Electronic control unit
GU30721410
Not Available
25
Flexible support
GU27723835
£3,49 Unit Price incl. VAT
26
Condenser
GU27710435
Not Available
27
Wire
GU18759550
£4,92 Unit Price incl. VAT
28
Alternator-regulator wiring
GU29748550
Not Available
29
Headlight wiring w/harness
GU14747455
£9,23 Unit Price incl. VAT
30
Horn
GU28787247
£80,03 Unit Price incl. VAT
31
Block
GU17751200
Not Available

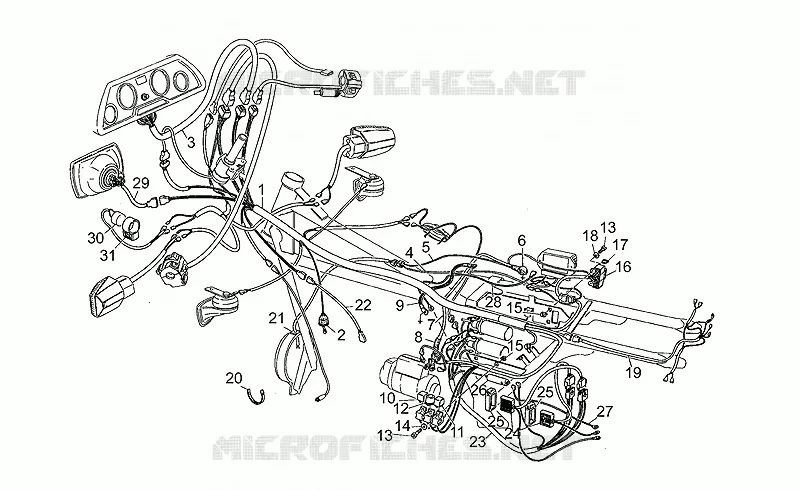

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
