1
Engine displacement
1000
2
Model
SP
3
Year
1992
4
Trim
SP III 1000
5
Parts Catalog
Front LH/rear brake system
6
Parts Diagram
Parts Catalog
RH Front brake system
by
Handlebar - Controls
Front LH/rear brake system
1
2
3
4
4
5
5
5
5
6
7
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Brake caliper
GU28652301
Not Available
2
pipe
GU28657560
£50,69 Unit Price incl. VAT
3
Rubber spacer
GU91551131
£2,16 Unit Price incl. VAT
4
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
5
Gasket
GU25656100
£1,57 Unit Price incl. VAT
6
screw 25 mm
GU98622525
£2,04 Unit Price incl. VAT
7
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
9
pipe
GU28658760
£19,85 Unit Price incl. VAT
10
Piston ring
GU17659650
£0,80 Unit Price incl. VAT
11
Eyelet
GU28659750
£7,44 Unit Price incl. VAT
12
Ring
GU91551120
£1,38 Unit Price incl. VAT
14
Hose clamp
GU17658360
Not Available
15
Ring
GU17658260
£1,58 Unit Price incl. VAT
16
Flexible pipe
GU28658840
Not Available
17
Bleeder+cap
GU17659260
£33,50 Unit Price incl. VAT
18
screw 25 mm
GU98622525
£2,04 Unit Price incl. VAT
19
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
20
Plug
GU23943510
£3,34 Unit Price incl. VAT
21
RH front brake caliper
GU28653001
Not Available
22
Rear brake caliper support
GU28635800
Not Available
23
Pads (pair) Frendo 222
GU28654601
£26,81 Unit Price incl. VAT
24
Brake caliper cover
GU17654760
Not Available
25
Brake caliper rev. kit
GU14659000
£58,19 Unit Price incl. VAT
26
Pins+Caliper springs
GU14659100
£17,95 Unit Price incl. VAT
27
Clearance washer 0,5 mm
GU95100332
£1,42 Unit Price incl. VAT
27
Clearance washer 0,8 mm
GU95100333
£0,52 Unit Price incl. VAT
28
screw
GU98280410
£0,92 Unit Price incl. VAT
29
Nut M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
30
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
31
Washer
GU95000206
£1,02 Unit Price incl. VAT
32
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT

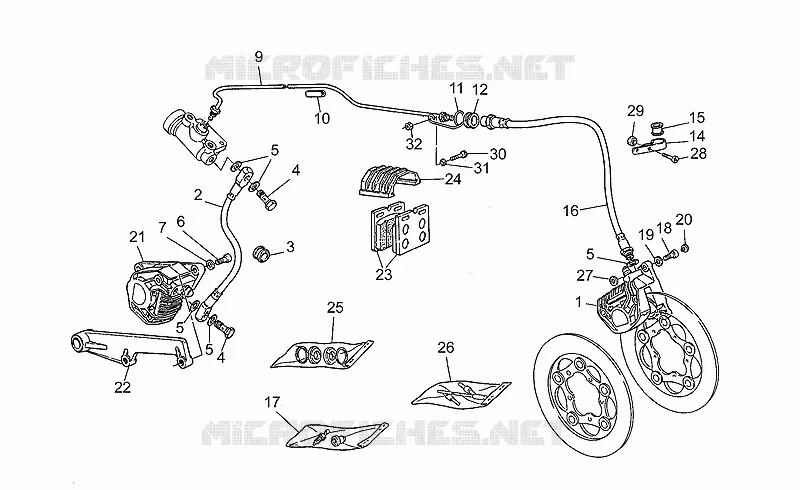

Find the detailed Front LH/rear brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
