Engine displacement
750
2
Model
NEVADA
3
Year
2006
4
Trim
Nevada Classic IE
5
Parts Catalog
Fron fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
Rear shock absorber
Fron fork II
1
1
2
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
35
36
37
38
1
screw M10x30
GU03530530
Not Available
2
Washer
GU03530529
Not Available
3
Vis M6X35
GU98620335
£1,14 Unit Price incl. VAT
3
screw
GU98620330
£0,49 Unit Price incl. VAT
4
Fourreau G
GU32522610
£242,28 Unit Price incl. VAT
4
Fourreau G
GU31490783
£1 164,38 Unit Price incl. VAT
5
Upper bush
GU30526761
Not Available
6
Washer
GU01530568
£5,23 Unit Price incl. VAT
7
Gasket ring 40x52x9,5
GU27530584
£10,33 Unit Price incl. VAT
8
Stop ring
GU32530501
£2,70 Unit Price incl. VAT
9
Dust cover
GU01530571
Not Available
10
Sleeve
GU32525410
Not Available
10
Tige
GU31525483
£630,16 Unit Price incl. VAT
11
Lower bush
GU30525861
Not Available
12
Pad
GU03530551
Not Available
13
Return spring
GU03530553
Not Available
13
Contre-ressort
GU32530502
£28,14 Unit Price incl. VAT
14
Tige
GU31530583
£75,71 Unit Price incl. VAT
14
Tige
GU32530503
£75,92 Unit Price incl. VAT
15
Spring
GU31530581
Not Available
15
Ressort
GU32526610
£49,22 Unit Price incl. VAT
16
Tuyau
GU32526310
£15,06 Unit Price incl. VAT
16
Tuyau precharge
GU31530584
£20,06 Unit Price incl. VAT
17
Plug cpl.
GU31504583
£25,78 Unit Price incl. VAT
18
Vis M10X40
GU98620540
£1,94 Unit Price incl. VAT
19
Base avec tube
GU32494110
£520,15 Unit Price incl. VAT
19
Vis
GU32494060
£173,05 Unit Price incl. VAT
20
Ring nut M25X1
GU31513480
Not Available
21
Plaque sup.fourche
GU32493110
£155,75 Unit Price incl. VAT
21
Fork upper plate
GU32493160
£247,40 Unit Price incl. VAT
22
Washer
GU27530510
Not Available
23
Nut M20x1,5
GU30512830
Not Available
24
Caoutchouc
GU32530506
£10,12 Unit Price incl. VAT
24
Rubber spacer
GU27530503
Not Available
25
Entretoise
GU91181039
£10,73 Unit Price incl. VAT
26
Cup
GU27530505
Not Available
27
Nut
GU27530506
Not Available
28
Segment
GU32530504
£10,34 Unit Price incl. VAT
29
RH sleeve cpl.
GU32522510
Not Available
29
Fourreau D
GU31490683
£178,82 Unit Price incl. VAT
30
Cavalier inf.
GU03530547
£64,45 Unit Price incl. VAT
30
Cavalier inf.
GU31501283
£25,38 Unit Price incl. VAT
31
Cavalier
GU32500410
£188,77 Unit Price incl. VAT
31
Cavalier
GU31500483
£46,15 Unit Price incl. VAT
32
screw M8x30
GU66530505
Not Available
33
Vis M10x60
GU98052560
£5,32 Unit Price incl. VAT
34
O-ring 4118
GU32530505
Not Available
35
Prot.Tige
GU32504210
£41,58 Unit Price incl. VAT
36
Bouchon
GU23943410
£3,06 Unit Price incl. VAT
37
Jeu de joints
GU32530610
£81,59 Unit Price incl. VAT
38
Engine oil seal kit
GU32530611
£398,48 Unit Price incl. VAT

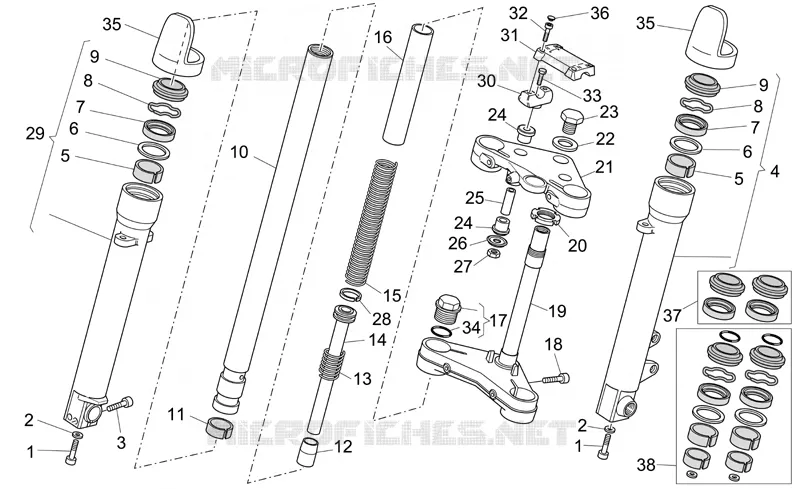

Find the detailed Fron fork II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
