1
Engine displacement
750
2
Model
NEVADA
3
Year
2006
4
Trim
Nevada Classic IE
5
Parts Catalog
Rear lights
6
Parts Diagram
Parts Catalog
Front lights
by
Front electrical system
Rear lights
1
2
3
4
4
5
6
7
8
9
10
11
11
12
12
13
1
Clignot.av.ga./arr.dr.
GU32751611
£42,13 Unit Price incl. VAT
1
LH front/RH rear turn indic.
GU32751660
£42,59 Unit Price incl. VAT
2
Taillight
GU32740960
£117,22 Unit Price incl. VAT
3
RH front/LH rear turn indic.
GU32750611
Not Available
3
Clignot.av.dr./arr.ga.
GU32750660
£50,77 Unit Price incl. VAT
4
Vis TBEI M6x20
GU98370621
£1,02 Unit Price incl. VAT
5
Flanged nut M6x9
GU92660007
£0,71 Unit Price incl. VAT
6
Feu arrière
GU03740930
£87,59 Unit Price incl. VAT
7
Lampe (ou Ampoule) 12V/5-21W
GU93450224
£7,44 Unit Price incl. VAT
8
Douille anti vibration
GU93231605
£2,59 Unit Price incl. VAT
9
Vis M5X18
GU98350218
£2,35 Unit Price incl. VAT
10
Feu de plaque
GU32745260
£66,53 Unit Price incl. VAT
11
Turn indicator lens
GU32753760
£10,90 Unit Price incl. VAT
11
Vitre clignotant
GU32753711
£10,50 Unit Price incl. VAT
12
Lampe (ou Ampoule) 12V-10W
GU93450127
£3,11 Unit Price incl. VAT
12
Lamp, orange
GU93450126
Not Available
13
Self-locking nut M5
AP8152306
Not Available

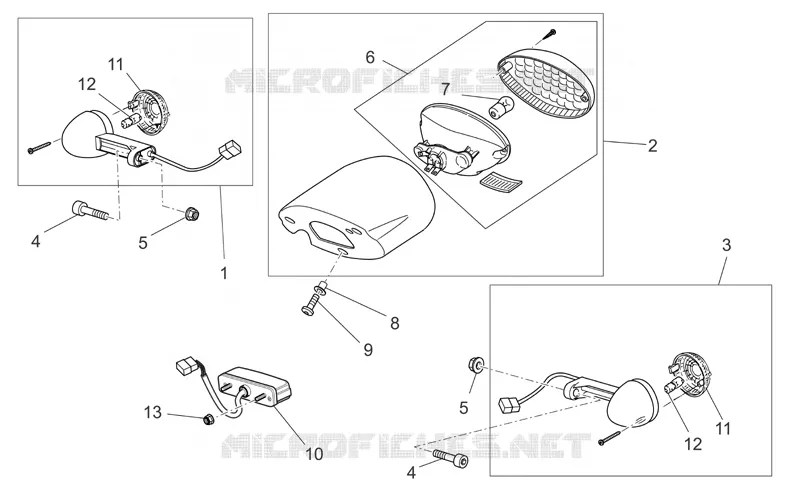

Find the detailed Rear lights MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
