Engine displacement
750
2
Model
NEVADA
3
Year
2006
4
Trim
Nevada Classic IE
5
Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Decal and plate set
by
Crank-case
Fuel vapour recover system
1
2
2
3
4
4
5
6
6
7
7
7
8
9
9
10
11
12
13
14
15
16
17
18
1
Filtre à charbon
AP8102678
£41,63 Unit Price incl. VAT
2
Collier
AP8102688
£65,77 Unit Price incl. VAT
3
Collier
GU32439260
£10,20 Unit Price incl. VAT
4
Vis bride M6X16
GU98210616
£3,95 Unit Price incl. VAT
5
Clip M6
AP8102376
Not Available
6
TUYAU
856063
£63,43 Unit Price incl. VAT
7
pipe SAE 30 d.11,11x4,8
856062
Not Available
8
"Raccord en ""Y"""
AP8120116
£33,00 Unit Price incl. VAT
9
Raccord
GU32115210
£25,56 Unit Price incl. VAT
10
Soupape pression
GU01102520
£42,11 Unit Price incl. VAT
11
Collier
AP8102159
£9,29 Unit Price incl. VAT
12
Collier clic
AP8102239
£3,06 Unit Price incl. VAT
13
Collier clic, blanc
AP8102765
£6,40 Unit Price incl. VAT
14
Collier
AP8101595
£3,97 Unit Price incl. VAT
15
Cable-guide
AP8121586
Not Available
16
Guide câble tuyau frein
AP8201417
£26,51 Unit Price incl. VAT
17
Guide-câble
AP8221114
£17,98 Unit Price incl. VAT
18
Tuyau
856064
£32,62 Unit Price incl. VAT

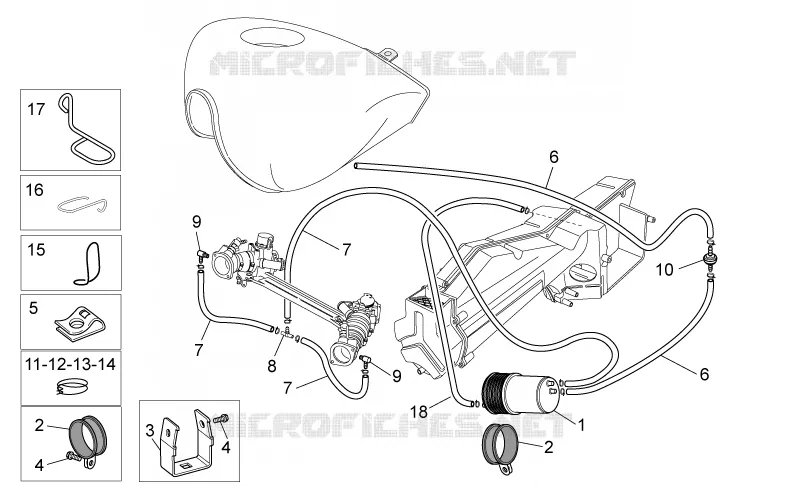

Find the detailed Fuel vapour recover system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
