1
Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
Front electrical system
6
Parts Diagram
Parts Catalog
Foot rests
by
Cylinder - Piston
Front electrical system
1
2
2
2
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
DIP SWITCH CONNECTOR BOX
887955
£13,82 Unit Price incl. VAT
2
H.T. COIL
641901
£118,08 Unit Price incl. VAT
3
COVER LOCKING SCREW
B063162
£14,06 Unit Price incl. VAT
4
SCREW PIN
B063844
£15,76 Unit Price incl. VAT
5
SCREW W/ FLANGE M6X25
AP8152280
£2,48 Unit Price incl. VAT
6
HT COIL SUPPORT
B063508
£16,34 Unit Price incl. VAT
7
FLANGED HEXAGONAL HEAD SCREW M6X30
AP8152281
£1,80 Unit Price incl. VAT
8
SCREW (CYLINDER HEAD)
976614
£15,76 Unit Price incl. VAT
9
Nut Nyloc
GU92630206
£2,48 Unit Price incl. VAT
10
SPRING
641652
£2,59 Unit Price incl. VAT
11
BUSHING
AP8121032
£3,88 Unit Price incl. VAT
12
FLANGED HEXAGONAL HEAD SCREW M6X16
AP8152278
£1,91 Unit Price incl. VAT
13
Screw w/ flange M5x12
AP8152302
Not Available
14
SELF-LOCKING NUT M6
AP8152299
£1,88 Unit Price incl. VAT
15
SPRING PLATE
248419
£2,00 Unit Price incl. VAT
16
HT COIL SUPPORT
B063742
£13,30 Unit Price incl. VAT
17
AIR TEMP SENSOR
AP8124936
£82,98 Unit Price incl. VAT
18
O-ring
GU90706141
Not Available
19
RUBBER HIGH VOLTAGE CABLES
B063131
£12,96 Unit Price incl. VAT
20
SPARG PLUG LMAR8F-9
887016
£23,48 Unit Price incl. VAT
21
BATTERY FIXING
B064017
£2,48 Unit Price incl. VAT
22
SHIELDED CUP WITH CABLE
2D000182
£62,88 Unit Price incl. VAT
23
SHIELDED CUP WITH CABLE
2D000181
£61,22 Unit Price incl. VAT
24
SHIELDED CUP WITH CABLE
2D000180
£62,88 Unit Price incl. VAT
25
Screw w/ flange M5x12
AP8152302
Not Available
26
SPRING PLATE
248419
£2,00 Unit Price incl. VAT
27
Relay
AP8224462
£24,32 Unit Price incl. VAT
28
Horn
890979
£71,26 Unit Price incl. VAT
29
Bolt 6X16
GU98370616
£2,48 Unit Price incl. VAT
30
SPRING PLATE (M6)
254485
£1,64 Unit Price incl. VAT
31
FLY SPRING
890760
£16,21 Unit Price incl. VAT
32
TEMPERATURE SENSOR
887421
£147,26 Unit Price incl. VAT
33
Encoder sensor
832029
Not Available
34
ADJ.SHIM KIT FOR RPM SENS. 8/1.0/1.2MM
B063592
£7,50 Unit Price incl. VAT
35
Allen Bolt
GU98682316
£1,26 Unit Price incl. VAT
36
Smartphone interface control unit
2D000249
Not Available
37
WIRING FRONT INDICATORS
2D000253
£30,20 Unit Price incl. VAT

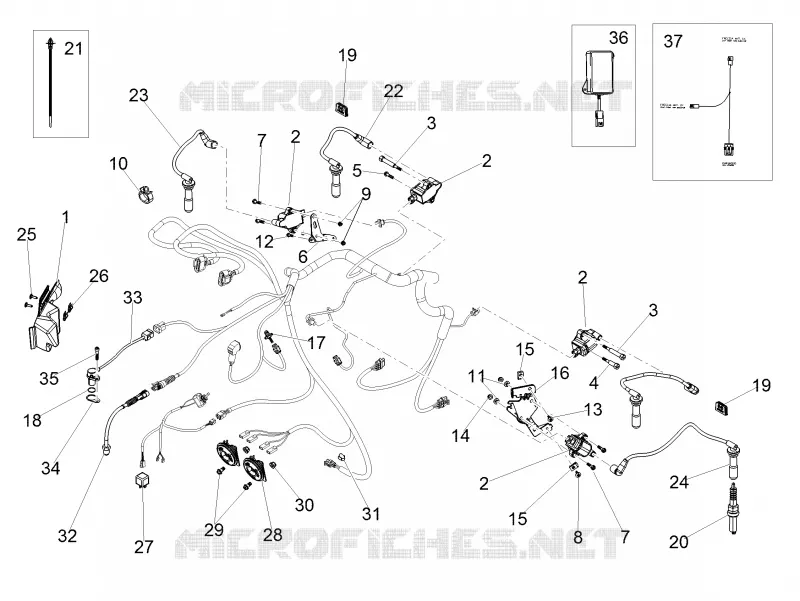

Find the detailed Front electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
