Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
RH cylinder timing system I
6

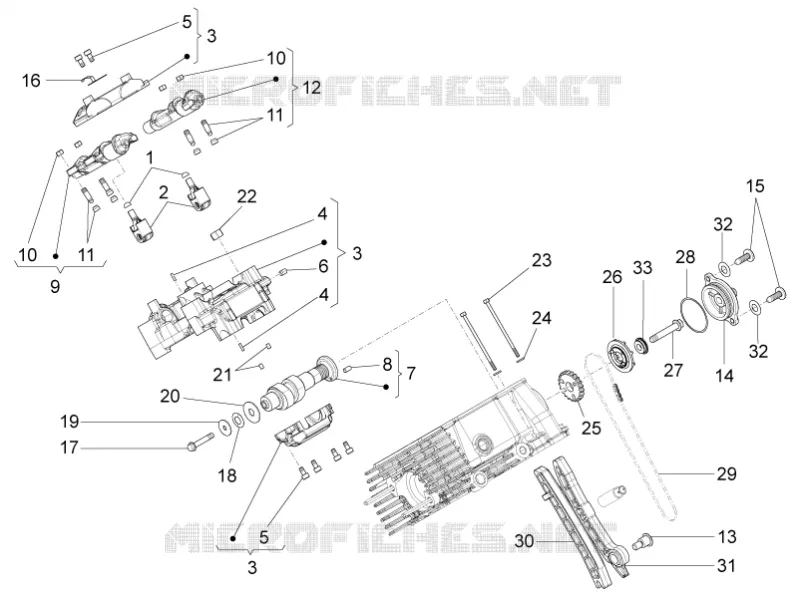

Parts Diagram
Parts Catalog
Rear mudguard
by
Valigia SX
RH cylinder timing system I
1
2
3
3
3
3
4
4
5
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
1
Pad
878574
£12,38 Unit Price incl. VAT
2
Tappet
B017067
Not Available
3
Rockers axle support DX
887161
Not Available
4
Pin D. 2,5
872759
£16,14 Unit Price incl. VAT
5
screw M8x30
015792
Not Available
6
Plug M6x10
842360
£2,20 Unit Price incl. VAT
7
Cam axle
B014576
Not Available
8
Pin
976589
£0,66 Unit Price incl. VAT
9
Rocker arm assy (In LF/Ex RH)
2A000251
£209,10 Unit Price incl. VAT
10
Rocker arm adjuster nut
879916
£7,85 Unit Price incl. VAT
11
Adjuster screw
879707
£42,85 Unit Price incl. VAT
12
Rocker arm assy (In RH/Ex LF)
2A000252
£209,10 Unit Price incl. VAT
13
Spacer screw M8
878868
£8,14 Unit Price incl. VAT
14
Oil bleed cover
2A000082
£23,90 Unit Price incl. VAT
15
Torx convex big end screw
B016796
Not Available
16
Plate
B013661
£19,73 Unit Price incl. VAT
17
Screw w/ flange M6x25
414837
Not Available
18
Belleville spring
879938
£6,83 Unit Price incl. VAT
19
Shim washer
879936
£4,26 Unit Price incl. VAT
20
Shim washer
879937
£6,53 Unit Price incl. VAT
21
Roller
B013552
£3,35 Unit Price incl. VAT
22
Nut M10x1,25
825694
Not Available
23
Screw w/ flange M6x120
487444
£22,22 Unit Price incl. VAT
24
Plain washer 12x6,1x2
976674
£5,14 Unit Price incl. VAT
25
Timing gear
976350
£269,21 Unit Price incl. VAT
26
Centrifugal separator
2A000080
£16,76 Unit Price incl. VAT
27
Screw w/ flange
1A000425
£9,36 Unit Price incl. VAT
28
Gasket ring 2,62x46,52
880965
£7,78 Unit Price incl. VAT
29
Camshaft chain
976341
£116,12 Unit Price incl. VAT
30
Chain guide plate
976338
£15,74 Unit Price incl. VAT
31
Chain tensioner sliding block
976337
£15,78 Unit Price incl. VAT
32
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
33
Spacer
2A000081
£14,83 Unit Price incl. VAT
