Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
Timing system
6

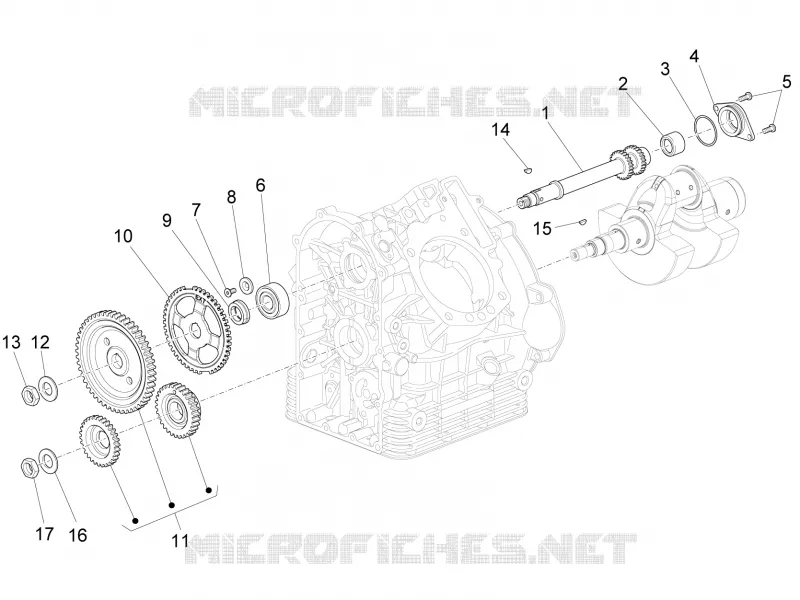

Parts Diagram
Parts Catalog
Transmission complete
by
Rear mudguard
Timing system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Timing system
976330
£430,74 Unit Price incl. VAT
2
Roller cage 25x32x12
976381
£24,68 Unit Price incl. VAT
3
O-ring 37,82x1,78
976488
£2,47 Unit Price incl. VAT
4
Flange
976331
£71,00 Unit Price incl. VAT
5
Hex socket screw M6x14
GU98350315
£1,26 Unit Price incl. VAT
6
Ball bearing 20x47x18
976355
£74,68 Unit Price incl. VAT
7
screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
8
Washer
873928
£10,54 Unit Price incl. VAT
9
Spacer
887524
£21,22 Unit Price incl. VAT
10
Phonic wheel
887030
£37,88 Unit Price incl. VAT
11
Gear kit
85269R
£337,26 Unit Price incl. VAT
12
Spring washer 19x34x1,5
GU14433400
£1,02 Unit Price incl. VAT
13
Nut M18x1,5
829232
£4,69 Unit Price incl. VAT
14
Tab 4x5
887044
£7,78 Unit Price incl. VAT
15
Transmission key 3x6,5
GU91600365
£7,20 Unit Price incl. VAT
16
Belleville spring
976665
£17,94 Unit Price incl. VAT
17
Nut M25x1,5
976649
£21,32 Unit Price incl. VAT
