Parts Catalog
Swing arm, 2nd series
6
Parts Diagram
Parts Catalog
Swing arm, 1st series
by
Swing arm, 850T5 Carab.1989
Swing arm, 2nd series
1
2
3
4
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
20
1
Swing arm
GU28540250
Not Available
2
screw
GU98052535
£1,94 Unit Price incl. VAT
3
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
4
Nut
GU14547800
Not Available
5
Spacer
GU12547200
Not Available
6
Pin
GU14547001
£91,79 Unit Price incl. VAT
7
Gasket ring
GU90403040
Not Available
8
Bearing
GU92249217
Not Available
9
Protection collar
GU18548000
£42,23 Unit Price incl. VAT
10
Hose clamp 60x62x10
GU93305060
£13,44 Unit Price incl. VAT
11
Clamp
GU93305078
Not Available
12
Coupling
GU30328031
Not Available
12
Double joint
GU28328040
Not Available
13
Circlip
GU90272062
£2,58 Unit Price incl. VAT
14
Ball bearing 30x62x16
GU92204230
£67,75 Unit Price incl. VAT
15
Snap ring
GU90271020
£0,85 Unit Price incl. VAT
16
Drive shaft
GU28326345
£123,71 Unit Price incl. VAT
17
Hose
GU18327700
Not Available
18
Snap ring
GU90271020
£0,85 Unit Price incl. VAT
19
Cover
GU14498550
Not Available
20
Cover
GU93180105
£1,78 Unit Price incl. VAT

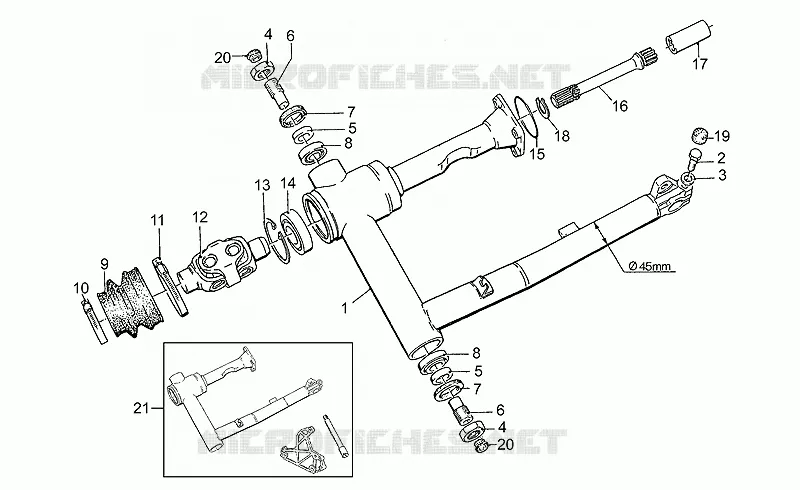

Find the detailed Swing arm, 2nd series MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
