1
Engine displacement
850
2
Model
850-T5
3
Year
1986
4
Trim
T5 Polizia VecchioTipo
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Fuel supply
by
Drive shaft
Exhaust unit
1
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
11
12
12
13
13
14
14
15
15
15
15
16
17
1
RH exhaust pipe
GU14120901
Not Available
2
LH exhaust pipe
GU14120906
Not Available
3
Spacer
GU14121200
£27,12 Unit Price incl. VAT
4
Flange
GU17121061
Not Available
5
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
6
Nut
GU92781081
£10,21 Unit Price incl. VAT
7
Gasket
GU90718370
£9,22 Unit Price incl. VAT
8
Expansion chamber
GU17123962
Not Available
9
RH silencer
GU29123000
Not Available
10
LH silencer
GU29122900
Not Available
11
Hose clamp
GU14126900
Not Available
12
Hose clamp
GU14123400
£38,70 Unit Price incl. VAT
13
Hex screw
GU98054420
£0,49 Unit Price incl. VAT
14
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
15
Nut
GU92602208
Not Available
16
RH plate
GU19128660
Not Available
17
LH plate
GU19128760
£33,74 Unit Price incl. VAT

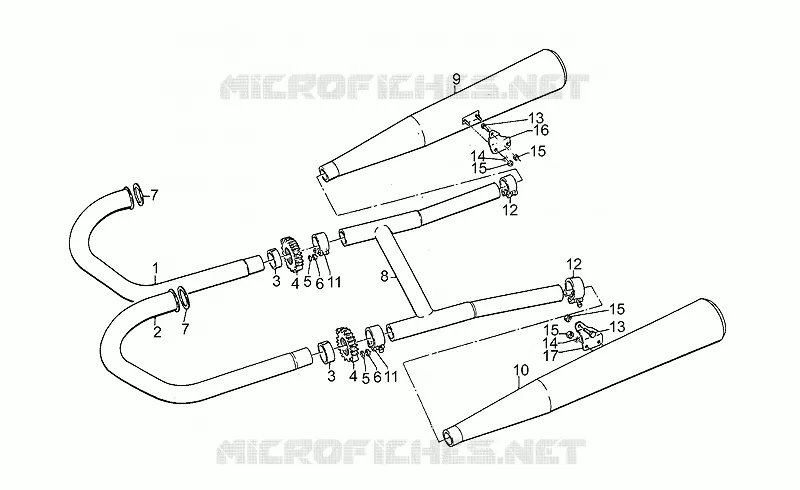

Find the detailed Exhaust unit MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
