Engine displacement
850
2
Model
850-T5
3
Year
1986
4
Trim
T5 Polizia VecchioTipo
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Transmission cage
by
Cylinder head
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
Cover
GU28023545
Not Available
2
Washer 15,2x26x0,5
GU10032700
£1,25 Unit Price incl. VAT
3
Cover gasket
GU14023760
£9,22 Unit Price incl. VAT
4
screw M6x25
GU98612325
£1,26 Unit Price incl. VAT
4
screw
GU98612330
£0,80 Unit Price incl. VAT
5
RH cylinder head, blank
GU28022145
Not Available
6
LH cylinder head, blank
GU28022245
Not Available
7
Exhaust valve guide
GU13036801
£59,48 Unit Price incl. VAT
8
Snap ring
GU90353016
£1,02 Unit Price incl. VAT
9
Gasket
GU28022000
£29,46 Unit Price incl. VAT
10
RH cylinder assy., blank
GU28060245
£1 384,12 Unit Price incl. VAT
11
Gasket
GU14020865
£5,98 Unit Price incl. VAT
12
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
13
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
14
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
15
Column nut
GU13021900
£15,36 Unit Price incl. VAT
16
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
17
Stud bolt
GU12021800
£35,70 Unit Price incl. VAT
18
Stud bolt
GU12021700
Not Available
19
Washer 10,5X21X1
GU14018400
£1,26 Unit Price incl. VAT
20
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
21
Intake valve
GU29036050
£121,36 Unit Price incl. VAT
22
Exhaust valve
GU29036150
£147,19 Unit Price incl. VAT
23
Washer 14,2x31x1
GU13037200
£2,75 Unit Price incl. VAT
24
Washer 14,2x31x0,3
GU14037300
£2,26 Unit Price incl. VAT
25
Lower cup
GU13037000
£11,89 Unit Price incl. VAT
26
Outer spring
GU13037400
£15,92 Unit Price incl. VAT
27
Inner spring
GU13037600
£17,58 Unit Price incl. VAT
28
Upper cup
GU14038000
£28,34 Unit Price incl. VAT
29
Valve half-cone
GU12038100
£12,37 Unit Price incl. VAT
30
RH rocker arm assy
GU14030201
£173,05 Unit Price incl. VAT
31
LH rocker arm assy
GU14030401
£173,05 Unit Price incl. VAT
32
Bushing 15x18x43
GU91111511
£53,51 Unit Price incl. VAT
33
Adjuster screw
GU17034050
£15,18 Unit Price incl. VAT
34
Nut
GU10034100
£13,40 Unit Price incl. VAT
35
Spring
GU94322215
£10,33 Unit Price incl. VAT
36
Washer 15,2x26x1
GU90118152
£12,17 Unit Price incl. VAT
37
Rocker shaft
GU12031800
Not Available
38
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
39
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
40
Rocker arm support
GU14034865
£54,23 Unit Price incl. VAT
41
Stud bolt
GU96508042
Not Available
42
LH cylinder assy., blank
GU28060145
Not Available
43
Washer
GU95001205
£1,64 Unit Price incl. VAT

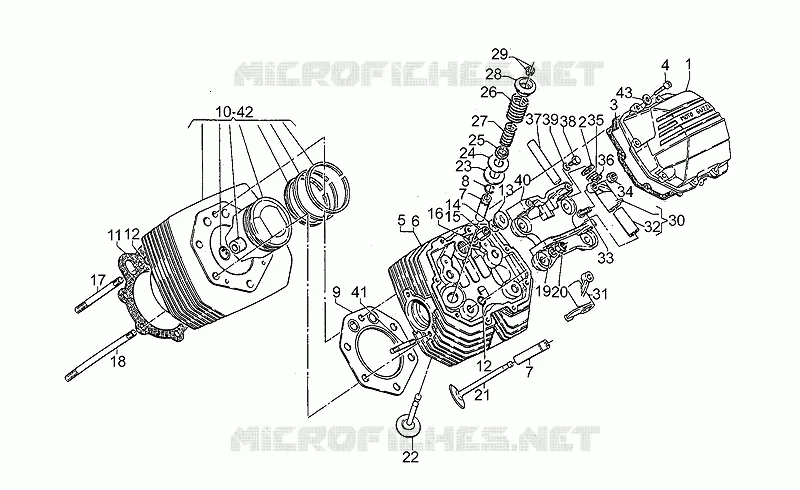

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
