1
Front turn indicator
GU23750680
Not Available
1
Rear turn indicator
GU19750656
Not Available
2
Front turn indicator
GU23750680
Not Available
2
Rear turn indicator
GU19750656
Not Available
3
Lamp
GU93450129
Not Available
4
Rear LH turn indicator
GU14751682
Not Available
4
Rear turn indicator
GU19750656
Not Available
5
Rear RH turn indicator
GU14751683
Not Available
5
Rear turn indicator
GU19750656
Not Available
6
Turn indicator lens
GU39753771
Not Available
6
Turn indicator lens
GU14753780
Not Available
7
Maintenance
GU18753501
Not Available
8
Nut
GU19742050
Not Available
9
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
10
Washer
GU95000206
£1,02 Unit Price incl. VAT
11
Nut
GU92602206
£1,68 Unit Price incl. VAT
12
Turn signal cable
GU17753140
Not Available
13
Cover
GU93180110
Not Available
14
Flasher unit
GU17750520
Not Available
15
Block
GU17751200
Not Available
16
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
17
Plate holder support
GU10474600
Not Available
18
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
19
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
20
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
21
screw
GU98054220
£1,18 Unit Price incl. VAT
22
Washer
GU95000205
£0,96 Unit Price incl. VAT
23
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
24
Nut
GU92630105
£1,68 Unit Price incl. VAT
25
Electrical system
GU17747150
Not Available
26
Dual connector
GU93400962
Not Available
27
Male connector
GU93400863
£0,88 Unit Price incl. VAT
28
Cap
GU17756000
Not Available
29
Cap
GU12735100
£2,12 Unit Price incl. VAT
30
Cap
GU13768200
Not Available
31
Connector 15 vie
GU14756251
Not Available
32
Connector
GU17748950
Not Available
33
Connection cables
GU17747350
Not Available
34
Valve cables
GU17747650
Not Available
35
Connector 3 vie
GU93400963
£1,57 Unit Price incl. VAT
36
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
37
B.l. switch wiring
GU17747550
Not Available
39
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
40
Rubber fuse box
GU17743000
Not Available
41
screw
GU98202530
Not Available
42
Cover
GU17743100
Not Available
43
Fuse 16A
GU17742550
Not Available
44
Horn
GU14743700
£37,94 Unit Price incl. VAT
44
Bass horn
GU14743701
Not Available
45
Hex screw
GU98052435
£2,04 Unit Price incl. VAT
46
Washer
GU95000208
£5,23 Unit Price incl. VAT
47
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
48
Nut
GU92602208
Not Available
50
Turn indicator lens
GU39753771
Not Available
51
Resistor Module
GU28727200
Not Available
52
Switch
GU18745701
Not Available

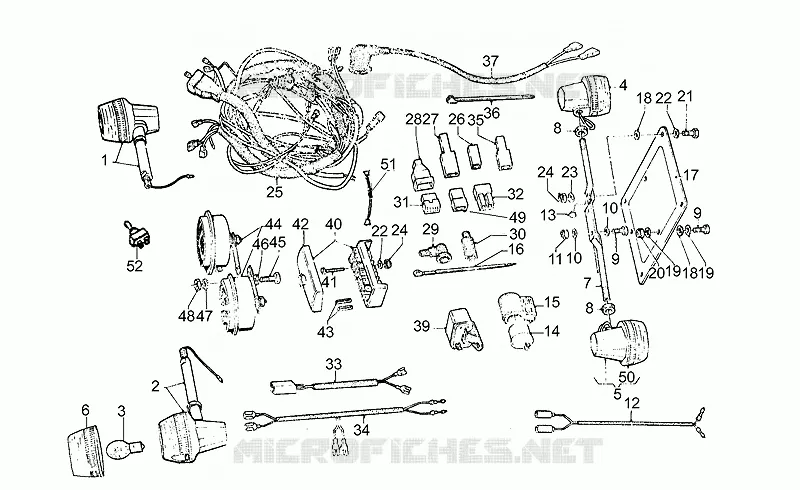

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
