1
Engine displacement
850
2
Model
850-T3
3
Year
1985
4
Trim
T3 e Derivati Calif./T4/Pol./CC/PA
5
Parts Catalog
El. devices 850T3-Police
6
Parts Diagram
Parts Catalog
El. devices 850T3-Carab.
by
Taillight, Police-Carab.
El. devices 850T3-Police
5
6
6
7
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
32
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
45
46
46
47
48
49
50
50
50
50
51
52
54
55
56
57
58
59
60
61
62
63
64
66
67
68
69
70
71
72
73
74
75
76
5
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
6
Bracket
GU17756840
Not Available
7
Washer
GU95000208
£5,23 Unit Price incl. VAT
8
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
9
Nut
GU92602208
Not Available
10
Button
GU17756345
Not Available
11
Maintenance
GU18504080
Not Available
12
screw
GU98200312
Not Available
14
Fuse cable
GU17757240
Not Available
15
Radio ind. earth cable
GU17757340
Not Available
16
Lights ind. earth cable
GU17757440
Not Available
17
Male connector
GU93400863
£0,88 Unit Price incl. VAT
18
RH turn sign. cable
GU17757640
Not Available
19
LH turn sign. cable
GU17757740
Not Available
20
Oil pressure ind. cable
GU17755640
Not Available
21
Dashboard lights cable
GU17757840
Not Available
22
Suppl. light cable
GU17757945
Not Available
23
One-tone sirens cable
GU17725845
Not Available
24
Coil connector
GU29755400
Not Available
25
Cap
GU18759650
Not Available
27
Bracket
GU18759351
Not Available
27
Radio remote control supp.
GU18502380001
Not Available
28
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
29
Wiring
GU18720150
Not Available
30
Dual connector
GU93400962
Not Available
31
Flasher unit
GU18759450
Not Available
32
Block
GU17751200
Not Available
33
plate
GU17750400
£3,44 Unit Price incl. VAT
34
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
35
Washer
GU95000206
£1,02 Unit Price incl. VAT
36
Notched washer
GU95021106
Not Available
37
Nut
GU92602206
£1,68 Unit Price incl. VAT
38
Wire
GU18759550
£4,92 Unit Price incl. VAT
39
Dashboard-flashing l. cable
GU18759250
Not Available
40
One-tone siren
GU28743745
Not Available
41
RH siren plate
GU17744245
Not Available
41
RH clamp
GU177442451
Not Available
42
LH siren plate
GU17744246
Not Available
42
LH clamp
GU177442461
Not Available
43
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
44
screw
GU98054318
£0,94 Unit Price incl. VAT
45
Notched washer
GU95021106
Not Available
46
Nut
GU92602206
£1,68 Unit Price incl. VAT
47
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
48
Fuse-siren relay cable
GU17757145
Not Available
49
Front turn sign. support
GU17751345
Not Available
50
Nut
GU92602411
£1,07 Unit Price incl. VAT
51
Turn indicator
GU19750602
Not Available
52
Turn indicator
GU19750602
Not Available
54
Sheath
GU93430307
Not Available
55
Pipe guide
GU14659750
Not Available
56
Ring
GU91551120
£1,38 Unit Price incl. VAT
57
screw
GU98052565
£4,44 Unit Price incl. VAT
58
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
59
Spacer
GU91181110
Not Available
60
Plate holder support
GU18753550
Not Available
61
screw
GU98054312
£1,02 Unit Price incl. VAT
62
Flasher unit
GU17750520
Not Available
63
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
64
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
66
Plate holder support
GU10474600
Not Available
67
Rubber spacer
GU91551085
Not Available
68
Spacer
GU91180607
Not Available
69
Washer 6,5X17X1.5
GU95100139
£1,20 Unit Price incl. VAT
70
Nut
GU92602206
£1,68 Unit Price incl. VAT
71
Gasket
GU17743835
Not Available
72
Turn indicator
GU19750602
Not Available
73
Turn indicator
GU19750602
Not Available
74
Turn indicator lens
GU39753771
Not Available
75
Turn indicator lens
GU39753771
Not Available
76
screw
GU98200306
£0,80 Unit Price incl. VAT

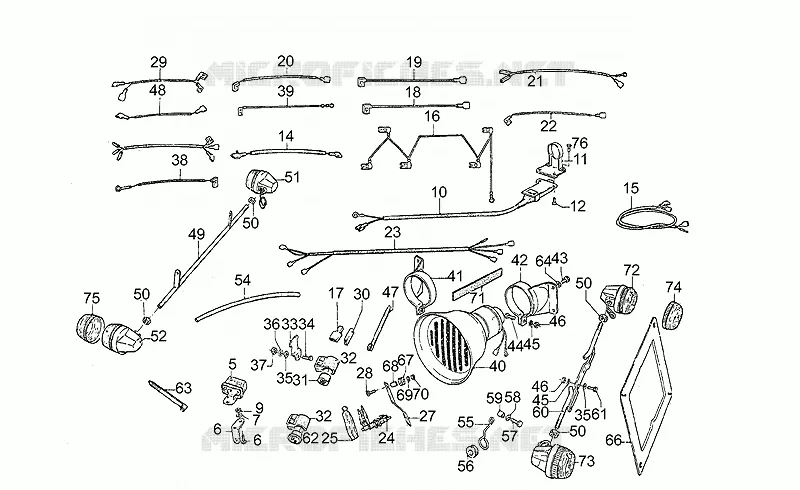

Find the detailed El. devices 850T3-Police MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
