1
Engine displacement
850
2
Model
850-T3
3
Year
1985
4
Trim
T3 e Derivati Calif./T4/Pol./CC/PA
5
Parts Catalog
Footrests-Stands
6
Parts Diagram
Parts Catalog
Pedals 850T3 California
by
Footrests-stand 850T3-Calif.
Footrests-Stands
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
29
30
31
31
32
33
33
33
33
34
34
35
36
37
38
39
39
39
39
40
41
1
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
2
Nut
GU92602208
Not Available
3
Lateral stand
GU17432060
Not Available
4
Washer
GU95004208
£0,70 Unit Price incl. VAT
5
Pin
GU99105129
Not Available
6
Spring
GU17434060
£9,18 Unit Price incl. VAT
7
Plate
GU14418200
Not Available
8
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
9
Central stand
GU174303451
Not Available
9
Central stand
GU174303621
Not Available
10
LH plate
GU14433200
Not Available
11
RH plate
GU14432900
Not Available
12
Lateral stand spring
GU12434001
Not Available
13
LH bush
GU14433500
£13,44 Unit Price incl. VAT
14
screw
GU98052545
£2,47 Unit Price incl. VAT
15
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
16
Spring washer 19x34x1,5
GU14433400
£1,02 Unit Price incl. VAT
17
Nut
GU92630108
£1,02 Unit Price incl. VAT
18
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
19
RH craddle arm
GU17420350
Not Available
20
LH craddle arm
GU174221501
Not Available
21
Rubber spacer
GU14423800
£12,46 Unit Price incl. VAT
22
RH footrest
GU17443660
Not Available
23
LH footrest
GU17446050
£69,23 Unit Price incl. VAT
24
Plate
GU17444250
£8,28 Unit Price incl. VAT
25
Footrest rubber
GU14443200
£45,48 Unit Price incl. VAT
26
Nut
GU92601206
Not Available
26
Nut
GU92602206
£1,68 Unit Price incl. VAT
27
screw
GU98072325
Not Available
27
screw
GU98052325
£0,56 Unit Price incl. VAT
28
Rear footrest
GU554423001
Not Available
28
Footrest
GU144413501
Not Available
29
Footrest rubber
GU55443385
£14,28 Unit Price incl. VAT
29
Footrest rubber
GU14443200
£45,48 Unit Price incl. VAT
30
Hex socket screw M12X30
GU98623630
£9,01 Unit Price incl. VAT
31
screw M12x35
GU98623635
Not Available
32
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
33
Nut
GU92602312
£1,58 Unit Price incl. VAT
34
Notched washer
GU95021112
£0,65 Unit Price incl. VAT
35
Tie rod
GU14429505
Not Available
36
screw
GU14429600
Not Available
37
LH outer spacer
GU14429900
£19,45 Unit Price incl. VAT
38
Spacer
GU14429800
Not Available
39
Washer
GU95000213
£0,96 Unit Price incl. VAT
40
Plate
GU17432761
Not Available
41
Rubber pedal
GU13432640
£9,67 Unit Price incl. VAT

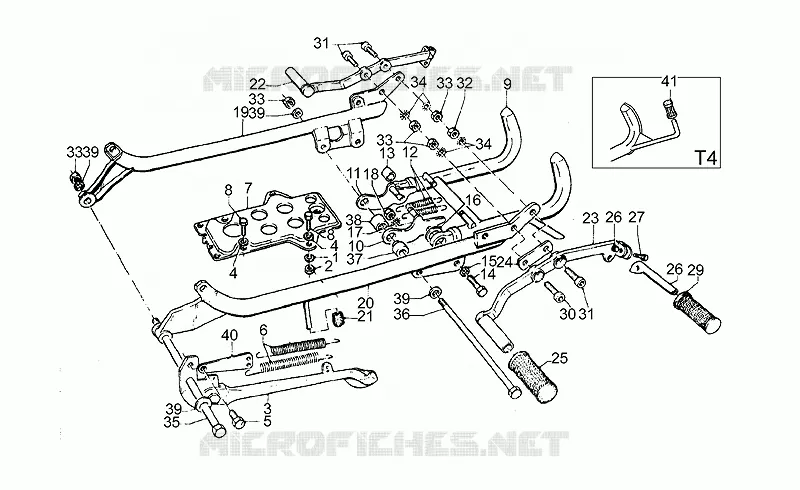

Find the detailed Footrests-Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
