Parts Catalog
REAR WHEEL
6
Parts Diagram
Parts Catalog
Front wheel
by
Saddles
REAR WHEEL
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Rear wheel
GU01630600
£1 159,78 Unit Price incl. VAT
2
Air valve
GU28617760
£13,82 Unit Price incl. VAT
3
Hub
GU01632200
Not Available
4
Ball bearing 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
5
Circlip
GU90271055
£7,60 Unit Price incl. VAT
6
Spacer
GU01634000
£53,68 Unit Price incl. VAT
7
Rear brake disc, black
GU01635700
Not Available
8
screw
GU30611460
£4,01 Unit Price incl. VAT
9
Primary drive / Cush drive
GU01336800
£14,40 Unit Price incl. VAT
10
O-ring
GU90706490
£1,61 Unit Price incl. VAT
11
Flexible coupling disc
GU14335203
Not Available
12
Ring
GU14335350
Not Available
13
Flange
GU14335650
£64,54 Unit Price incl. VAT
14
screw
GU98230620
£2,04 Unit Price incl. VAT
15
Special washer
GU61013800
£1,26 Unit Price incl. VAT
16
Rear wheel spindle
GU37633305
Not Available
17
Pin fixing screw
GU30632601
Not Available
18
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT
19
Bushing
GU37634505
£15,28 Unit Price incl. VAT
20
Spacer
GU37634805
£16,02 Unit Price incl. VAT
21
RH inner spacer
GU37634105
£164,66 Unit Price incl. VAT
22
Counterweight
GU14616150
£18,94 Unit Price incl. VAT

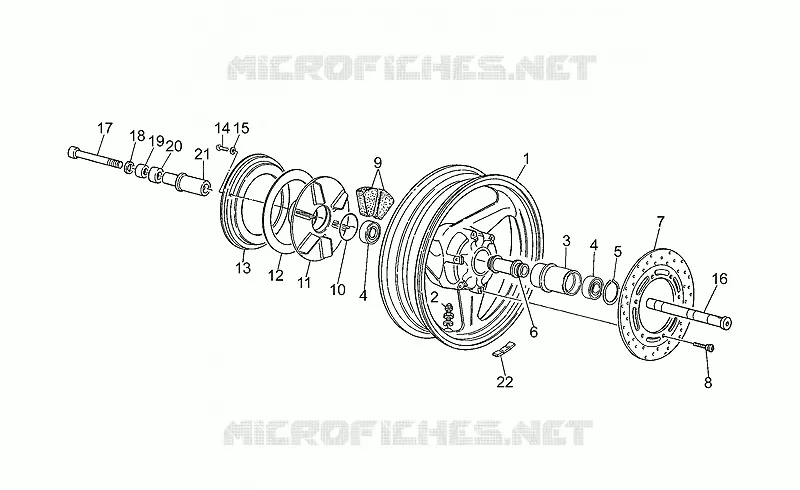

Find the detailed REAR WHEEL MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
