1
Engine displacement
1100
2
Model
SPORT
3
Year
1997
4
Trim
Sport Iniezione 1100
5
Parts Catalog
HANDLEBAR - CONTROLS
6
Parts Diagram
Parts Catalog
Rear brake system
by
Foot rests - Lateral stand
HANDLEBAR - CONTROLS
1
2
3
3
4
5
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
1
Right half handlebar
GU01600600
Not Available
2
Hex socket screw
GU98610335
£1,26 Unit Price incl. VAT
3
Washer
GU95001206
Not Available
4
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
5
Throttle
GU01603404
Not Available
5
Throttle w/out hand grip
GU01603400
Not Available
6
Adjuster screw
GU27603715
£14,10 Unit Price incl. VAT
7
Cap
GU27117615
£3,70 Unit Price incl. VAT
8
RH hand grip
GU27603520
£35,20 Unit Price incl. VAT
9
Nylon washer
GU29606970
£4,98 Unit Price incl. VAT
10
Throttle cable
GU01117504
Not Available
10
Throttle cable
GU01117500
Not Available
11
Engine stop-start device
GU01738800
£34,13 Unit Price incl. VAT
12
Left half handlebar
GU01600700
Not Available
13
screw
GU98230612
£1,36 Unit Price incl. VAT
14
Washer 6,4x10x0,7
GU14217901
Not Available
15
Clutch control complete
GU01605500
£215,39 Unit Price incl. VAT
16
Register
GU30602500
Not Available
17
Starter lever
GU27135215
Not Available
18
Lever pin
GU27604315
£10,20 Unit Price incl. VAT
19
Washer
GU27530594
Not Available
20
Plate
GU27530595
£3,91 Unit Price incl. VAT
21
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
22
LH lights sel. w/wiring
GU01738020
Not Available
22
LH lights sel. w/wiring
GU01738000
£301,61 Unit Price incl. VAT
23
LH hand grip
GU27603020
£40,18 Unit Price incl. VAT
24
H.bars anti.v weight
GU37602705
Not Available
25
screw
GU98620375
Not Available
26
Clutch cable
GU01093000
Not Available
27
Guard
GU27663815
£11,88 Unit Price incl. VAT
28
Choke cable
GU01132800
£19,68 Unit Price incl. VAT
29
Return spring 7x1,1x25
GU94321073
£1,70 Unit Price incl. VAT

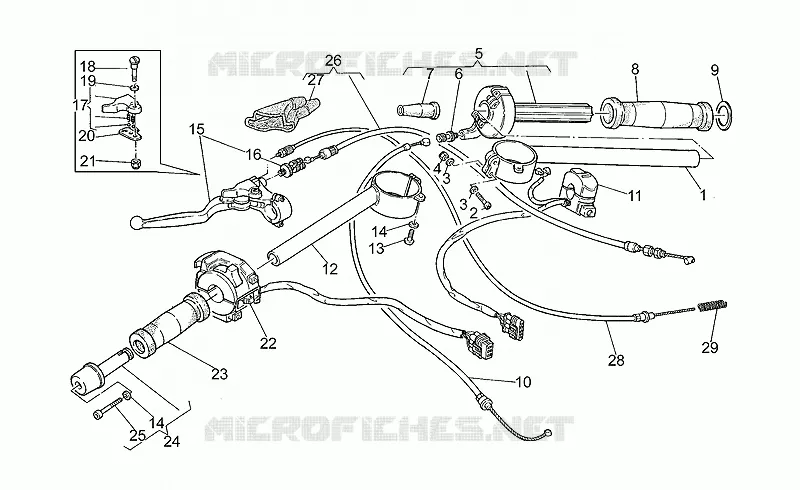

Find the detailed HANDLEBAR - CONTROLS MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
