Parts Catalog
Fuel supply
6
Parts Diagram
Parts Catalog
Electrical system
by
Transmission complete II
Fuel supply
1
2
3
3
4
4
5
5
6
7
8
9
10
10
11
12
12
12
13
13
13
13
13
13
14
15
16
16
17
18
19
20
21
1
Fuel pump
GU29107261
£641,08 Unit Price incl. VAT
2
Hose clamp
GU30107300
£10,12 Unit Price incl. VAT
3
Support rubber part
GU30105800
£12,89 Unit Price incl. VAT
4
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
5
Washer
GU95000206
£1,02 Unit Price incl. VAT
6
Spacer
GU91180618
£12,61 Unit Price incl. VAT
7
Pipe from p“ump to filter
GU30106100
Not Available
8
Fuel filter
GU30106000
£132,43 Unit Price incl. VAT
9
Hose clamp 8,8x185
GU30609600
£3,84 Unit Price incl. VAT
10
Hose clamp
GU12157900
£8,03 Unit Price incl. VAT
11
Tuyau
GU01106500
Not Available
12
Fuel pipe SAEJ30R9
GU00823952080
£84,76 Unit Price incl. VAT
13
Hose clamp
GU93305017
£10,24 Unit Price incl. VAT
14
Hose clamp
GU30113800
£6,48 Unit Price incl. VAT
15
screw
GU98052370
Not Available
16
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
17
Voltage regulator support
GU01112900
Not Available
18
Fuel pressure regulator
GU01112800
Not Available
19
Circlip
GU90272037
£1,02 Unit Price incl. VAT
20
Ring nut
GU30105200
£9,50 Unit Price incl. VAT
21
Gasket
GU90714103
Not Available

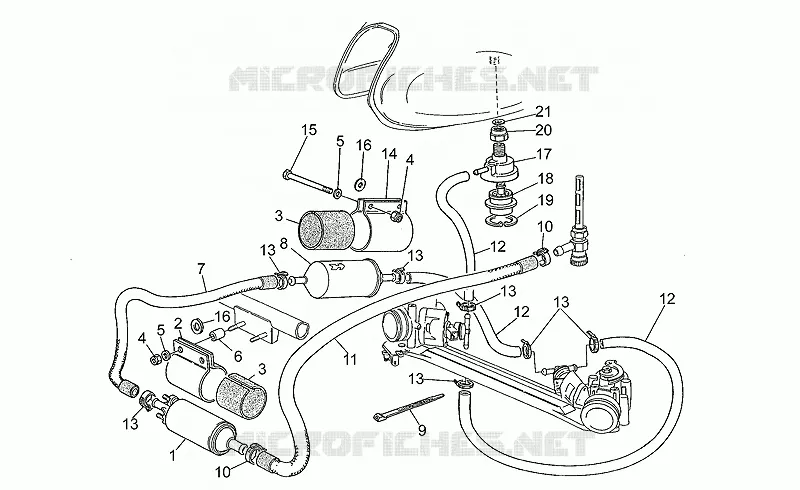

Find the detailed Fuel supply MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
