Parts Catalog
CRANKSHAFT
6
Parts Diagram
Parts Catalog
OIL COOLER
by
Driven shaft
CRANKSHAFT
25
24
23
22
21
20
19
18
17
17
17
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Cylindre avec piston cpl.d.
GU01060010
Not Available
2
Cylindre avec piston cpl. g.
GU01060110
Not Available
3
Piston
GU37060406
Not Available
4
Pistonring set
GU30060660
Not Available
5
Piston ring
GU30060760
£75,68 Unit Price incl. VAT
6
Piston ring
GU30060960
£52,38 Unit Price incl. VAT
7
Piston ring
GU30061060
Not Available
8
Piston pin
GU30061241
£114,19 Unit Price incl. VAT
9
Stop ring
GU90351038
Not Available
10
Gasket
GU14020865
£5,98 Unit Price incl. VAT
11
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
12
Stud bolt
GU12021800
£35,70 Unit Price incl. VAT
13
Stud bolt
GU12021700
Not Available
14
Connecting rod
GU30061541
£2 094,72 Unit Price incl. VAT
15
Connecting rod screw
GU30062241
Not Available
16
Bush
GU30061841
£97,70 Unit Price incl. VAT
17
Bearing half-shell
GU37062005
Not Available
17
Bearing half-shell 0,254 mm
GU37062006
£57,23 Unit Price incl. VAT
17
Bearing half-shell 0,762 mm
GU37062008
Not Available
17
Bearing half-shell 0,508 mm
GU37062007
£57,23 Unit Price incl. VAT
18
Arbre moteur cpl.
GU01064110
Not Available
19
Cover
GU37065405
£15,98 Unit Price incl. VAT
20
Flywheel
GU01067000
Not Available
21
screw
GU12067701
£0,72 Unit Price incl. VAT
22
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
23
Chain ring
GU37067905
Not Available
24
screw
GU37067705
£0,42 Unit Price incl. VAT
25
Washer 6,4x10x0,7
GU14217901
Not Available

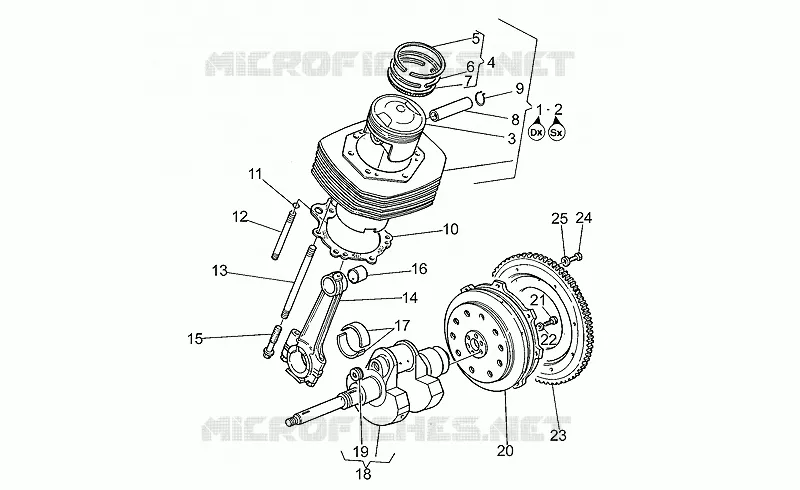

Find the detailed CRANKSHAFT MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
