1
Engine displacement
1100
2
Model
SPORT
3
Year
1998
4
Trim
Sport Corsa 1100
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Foot rests - Lateral stand
by
REAR WHEEL

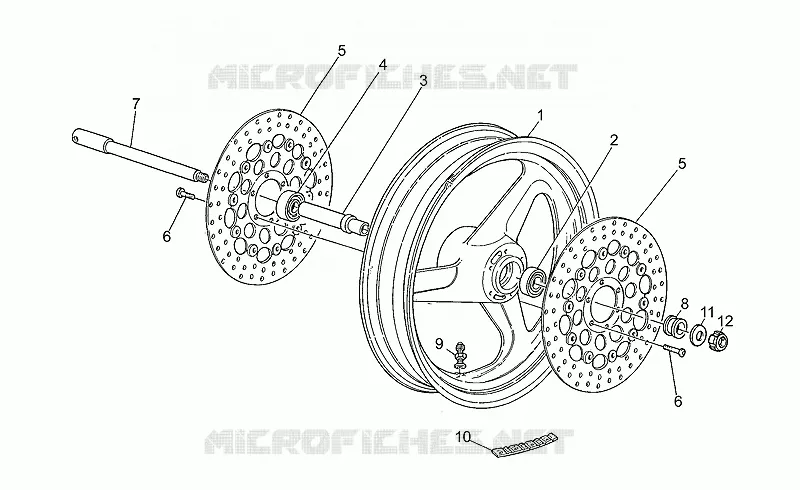

Front wheel
12
11
10
9
8
7
6
6
5
5
4
3
2
1
1
Roue avant complète
GU01610310
Not Available
2
Ball bearing 25x52x15
GU92205227
£31,73 Unit Price incl. VAT
3
Bearing internal spacer
GU01615300
Not Available
4
Bearing 20x52x15
GU92201821
£35,15 Unit Price incl. VAT
5
Front brake disc
GU01613351
Not Available
6
SCREW TCC IX M8X30 M8x30
GU98230820
£7,60 Unit Price incl. VAT
7
Front wheel spindle
GU01614100
Not Available
8
Spacer
GU01616300
£53,71 Unit Price incl. VAT
9
Air valve
GU28617760
£13,82 Unit Price incl. VAT
10
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
11
Washer
GU95004219
£1,06 Unit Price incl. VAT
12
Ring nut
GU93704160
Not Available

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Sport Corsa 1100

SHOCK ABSORBER

SHOCK ABSORBER

for Sport Corsa 1100 from 1998

Front body

Front body

for Sport Corsa 1100 from 1998

Transmission complete I

Transmission complete I

for Sport Corsa 1100 from 1998

Dashboard

Dashboard

for Sport Corsa 1100 from 1998

Headlight-Horn

Headlight-Horn

for Sport Corsa 1100 from 1998

Taillight

Taillight

for Sport Corsa 1100 from 1998

Air filter

Air filter

for Sport Corsa 1100 from 1998

Front fork

Front fork

for Sport Corsa 1100 from 1998

Electrical system

Electrical system

for Sport Corsa 1100 from 1998

Front brake system

Front brake system

for Sport Corsa 1100 from 1998

Rear brake system

Rear brake system

for Sport Corsa 1100 from 1998

HANDLEBAR - CONTROLS

HANDLEBAR - CONTROLS

for Sport Corsa 1100 from 1998

Foot rests - Lateral stand

Foot rests - Lateral stand

for Sport Corsa 1100 from 1998

Front wheel

Front wheel

for Sport Corsa 1100 from 1998

REAR WHEEL

REAR WHEEL

for Sport Corsa 1100 from 1998

Saddles

Saddles

for Sport Corsa 1100 from 1998

Tank

Tank

for Sport Corsa 1100 from 1998

STEERING

STEERING

for Sport Corsa 1100 from 1998

Rear chassis/body

Rear chassis/body

for Sport Corsa 1100 from 1998

Frame/bodywork

Frame/bodywork

for Sport Corsa 1100 from 1998

Electrical system

Electrical system

for Sport Corsa 1100 from 1998

Fuel supply

Fuel supply

for Sport Corsa 1100 from 1998

Transmission complete II

Transmission complete II

for Sport Corsa 1100 from 1998

Exhaust unit

Exhaust unit

for Sport Corsa 1100 from 1998

Booster kit

Booster kit

for Sport Corsa 1100 from 1998

Gear selector

Gear selector

for Sport Corsa 1100 from 1998

OIL COOLER

OIL COOLER

for Sport Corsa 1100 from 1998

CRANKSHAFT

CRANKSHAFT

for Sport Corsa 1100 from 1998

Driven shaft

Driven shaft

for Sport Corsa 1100 from 1998

Gear-box components

Gear-box components

for Sport Corsa 1100 from 1998

Crankcase

Crankcase

for Sport Corsa 1100 from 1998

THROTTLE BODY

THROTTLE BODY

for Sport Corsa 1100 from 1998

Timing system

Timing system

for Sport Corsa 1100 from 1998

Oil filter

Oil filter

for Sport Corsa 1100 from 1998

CLUTCH

CLUTCH

for Sport Corsa 1100 from 1998

Generator - Regulator

Generator - Regulator

for Sport Corsa 1100 from 1998

Starter motor

Starter motor

for Sport Corsa 1100 from 1998

Oil pump

Oil pump

for Sport Corsa 1100 from 1998

Gearbox housing

Gearbox housing

for Sport Corsa 1100 from 1998

Heads

Heads

for Sport Corsa 1100 from 1998

Special tools

Special tools

for Sport Corsa 1100 from 1998

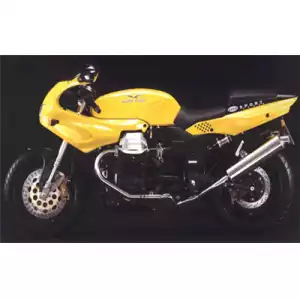

MOTO GUZZI LAVERDA SCARABEO Sport Corsa 1100 1998
