1
Engine displacement
1100
2
Model
SPORT
3
Year
1998
4
Trim
Sport Corsa 1100
5
Parts Catalog
CLUTCH
6
Parts Diagram
Parts Catalog
Oil filter
by
Generator - Regulator
CLUTCH
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
3
2
1
1
Clutch spring
GU13084100
£8,09 Unit Price incl. VAT
2
Disc
GU30082900
£284,60 Unit Price incl. VAT
3
Clutch plate complete
GU29084450
£78,48 Unit Price incl. VAT
4
Intermediate plate
GU12082300
£76,38 Unit Price incl. VAT
5
Cup
GU12082800
£75,25 Unit Price incl. VAT
6
Rod
GU14085700
£65,41 Unit Price incl. VAT
7
Bush
GU14085900
£2,48 Unit Price incl. VAT
8
Inner body
GU14086000
£82,28 Unit Price incl. VAT
9
Thrust bearing
GU12087001
Not Available
10
Outer body
GU14086100
£71,74 Unit Price incl. VAT
11
O-ring 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
12
Débrayage
GU01090210
Not Available
13
Lever return spring
GU94321105
£1,94 Unit Price incl. VAT
14
Adjuster screw
GU30090400
Not Available
15
Nut M8x1
GU92602508
Not Available
16
Pin 7x39
GU95780271
Not Available
17
Split pin
GU95500222
£1,26 Unit Price incl. VAT

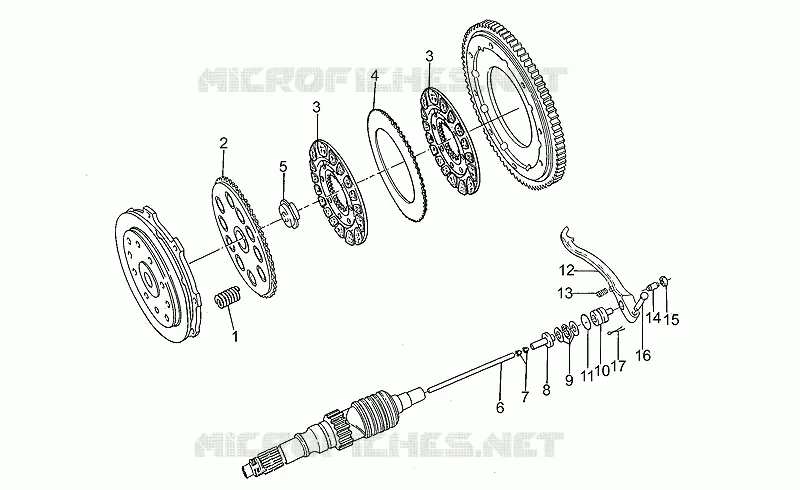

Find the detailed CLUTCH MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
