Engine displacement
1100
2
Model
SPORT
3
Year
1998
4
Trim
Sport Corsa 1100
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Gear-box components
by
THROTTLE BODY
Crankcase
46
45
44
43
42
41
40
40
40
40
39
38
37
36
35
34
33
32
31
31
30
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
13
12
12
11
10
10
9
8
7
6
5
4
3
2
1
1
Carter moteur
GU01000710
Not Available
2
Disc
GU12003900
Not Available
3
Stud bolt M8x66
GU96508066
£50,56 Unit Price incl. VAT
4
Washer
GU95004208
£0,70 Unit Price incl. VAT
5
Nut
GU92781081
£10,21 Unit Price incl. VAT
6
Coupling bush
GU12018900
£10,75 Unit Price incl. VAT
7
Stud bolt M8x75
GU96508075
£13,44 Unit Price incl. VAT
8
Nut
GU92602208
Not Available
9
Pin
GU95512081
£4,34 Unit Price incl. VAT
10
Complete flange
GU14011900
Not Available
10
Flange min.0,2 mm
GU14011901
£50,76 Unit Price incl. VAT
11
Pin
GU12012200
£15,28 Unit Price incl. VAT
12
screw
GU98054425
Not Available
13
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
14
Cover gasket
GU12001200
Not Available
15
Couvercle distribution
GU01001410
Not Available
16
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
17
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
18
Bouchon
GU01002110
Not Available
19
Gasket ring 28x38x7
GU90402840
£15,29 Unit Price incl. VAT
20
Flange
GU18001150
£13,20 Unit Price incl. VAT
21
Generator cover polished plated
GU03001600
£177,36 Unit Price incl. VAT
22
screw
GU98310630
Not Available
23
Rubber spacer
GU19007700
£4,44 Unit Price incl. VAT
24
Gasket
GU01003650
£11,50 Unit Price incl. VAT
25
Flasque
GU01003210
Not Available
26
Gasket
GU01003600
£12,05 Unit Price incl. VAT
27
Coupe huile moteur
GU01003510
Not Available
28
O-ring
GU90706948
£12,05 Unit Price incl. VAT
29
Couvercle filtre à huile
GU01003410
Not Available
30
screw
GU98622322
£1,02 Unit Price incl. VAT
31
Washer 6,15x11x0,8
GU95004206
Not Available
32
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
33
Gasket
GU10528900
£4,45 Unit Price incl. VAT
34
Oil level plug
GU01004900
Not Available
35
O-ring 17,86X2,62
GU90706178
£0,98 Unit Price incl. VAT
36
Couvercle
GU01018310
£33,42 Unit Price incl. VAT
37
O-ring
GU90706313
£1,39 Unit Price incl. VAT
38
screw
GU98250820
£1,50 Unit Price incl. VAT
39
Gasket
GU12011800
£3,74 Unit Price incl. VAT
40
Complete flange
GU12011400
Not Available
40
Flange min.0,4 mm
GU12011402
£61,15 Unit Price incl. VAT
40
Flange min.0,6 mm
GU12011403
£61,15 Unit Price incl. VAT
40
Flange min.0,2 mm
GU12011401
£63,46 Unit Price incl. VAT
41
Pin
GU12011700
£14,52 Unit Price incl. VAT
42
Gasket ring
GU90405367
£35,53 Unit Price incl. VAT
43
Pochette joints moteur
GU01999000
Not Available
44
Joint spy-série
GU01999500
Not Available
45
Moteur complet
GU01991010
Not Available
46
Adhesive label
GU02517700
Not Available

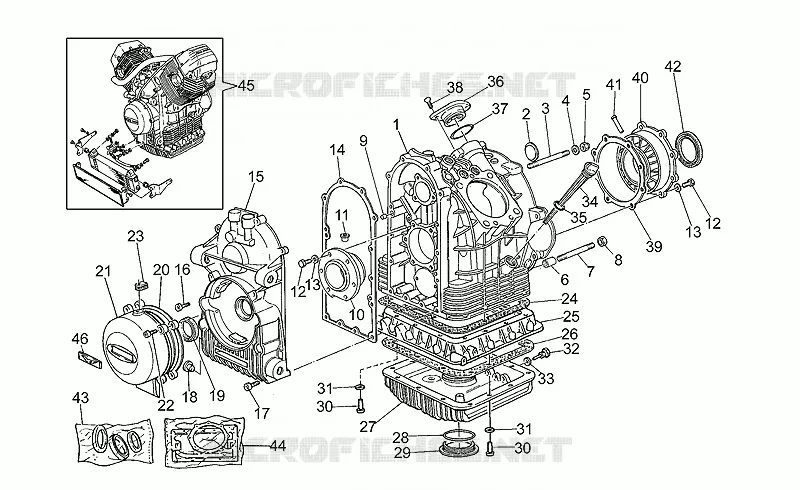

Find the detailed Crankcase MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
