Engine displacement
492
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light
5
Parts Catalog
Valve control
6

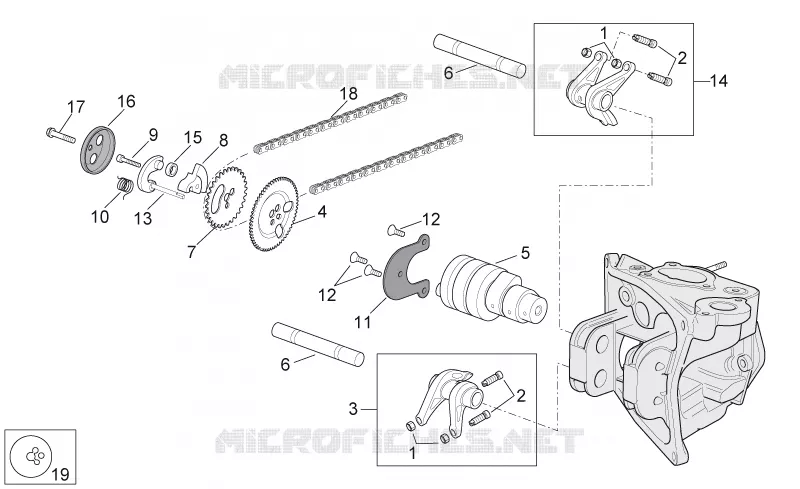

Parts Diagram
Parts Catalog
USA version
by
Water cooler
Valve control
1
1
2
2
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
Nut
484819
£1,33 Unit Price incl. VAT
2
Adjuster screw
82817R
Not Available
3
Exhaust cpl. rocker
8260285
£327,14 Unit Price incl. VAT
4
Phonic wheel
AP8560131
Not Available
5
Camshaft
8732065
Not Available
5
Camshaft
8454115
Not Available
6
Rocker shaft
827991
£12,52 Unit Price incl. VAT
7
Timing system gear
829198
Not Available
8
Counterweight
829071
£12,86 Unit Price incl. VAT
8
Counterweight
AP8560121
Not Available
9
Hex socket screw M5x30
018538
Not Available
10
Spring
AP8560135
Not Available
11
plate
AP8560230
Not Available
12
Screw w/ flange
AP8560044
Not Available
13
Decompression ground
8311615
Not Available
14
Intake cpl. rocker
8260275
£327,14 Unit Price incl. VAT
15
Gasket
AP8560122
Not Available
16
Drum
AP8560133
Not Available
16
Drum
873232
£17,47 Unit Price incl. VAT
17
Screw w/ flange
AP8560136
Not Available
18
Camshaft chain
827889
£59,88 Unit Price incl. VAT
19
Washer
873207
£2,39 Unit Price incl. VAT
