Engine displacement
492
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light
5
Parts Catalog
Electrical system I
6
Parts Diagram
Parts Catalog
Rear lights
by
Front fork I
Electrical system I
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Voltage regulator
58086R
Not Available
2
Voltage regulator support
AP8146985
Not Available
3
Horn
1D000636
£35,39 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
7
Relais support
AP8154001
Not Available
8
Fall sensor
584509
£100,30 Unit Price incl. VAT
9
Rubber sensor support
AP8144046
Not Available
10
Injection relay
AP8124869
Not Available
10
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
11
Relay rubber
AP8220546
£3,74 Unit Price incl. VAT
12
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
13
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
14
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
15
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
16
ECU
CM078607
£231,90 Unit Price incl. VAT
16
ECU
CM078605
£786,25 Unit Price incl. VAT
16
ECU
CM078408
Not Available
17
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
18
HT coil
58120R
£53,05 Unit Price incl. VAT
18
Coil cpl.
639187
£52,76 Unit Price incl. VAT
19
HT wire
640567
£10,76 Unit Price incl. VAT
19
HT wire
AP8127867
Not Available
20
Screened cap
969348
£15,46 Unit Price incl. VAT
20
Screened cap
293845
£25,22 Unit Price incl. VAT
21
Protection collar
436919
£2,16 Unit Price incl. VAT
21
Spark plug prot.collar
640492
Not Available
22
H.T. wiring sheath
CM007465
Not Available
22
H.T. wiring sheath
AP8144799
Not Available
23
screw M3x20
AP8152501
Not Available
24
Nut m3
AP8152502
£2,42 Unit Price incl. VAT
25
Coil holder
CM077303
£12,17 Unit Price incl. VAT
25
Coil holder
AP8144800
Not Available
26
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
26
Hex socket screw
031033
Not Available
27
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
28
Cable-guide
AP8134186
£0,86 Unit Price incl. VAT
29
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
30
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
31
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
32
Main wiring harness
859817
Not Available
32
Main wiring harness
852860
Not Available
32
Main wiring harness
890987
Not Available
33
Washer 3.2x5.7x0.9
012554
Not Available

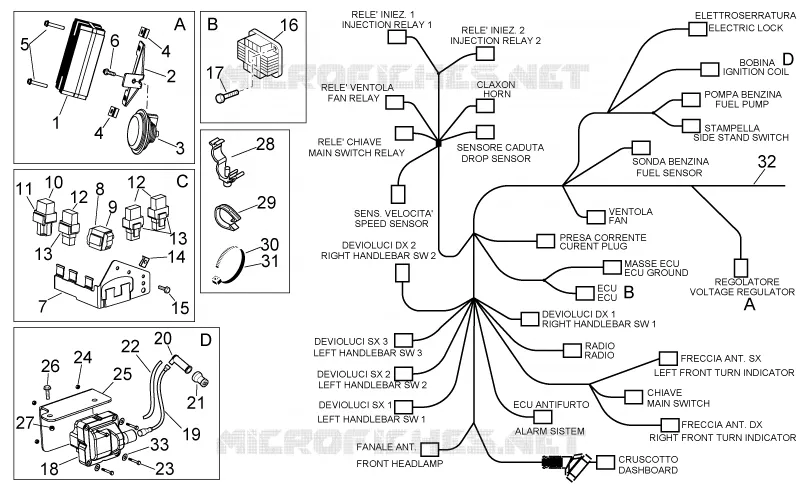

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
