Engine displacement
492
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light
5
Parts Catalog
Electrical system II
6

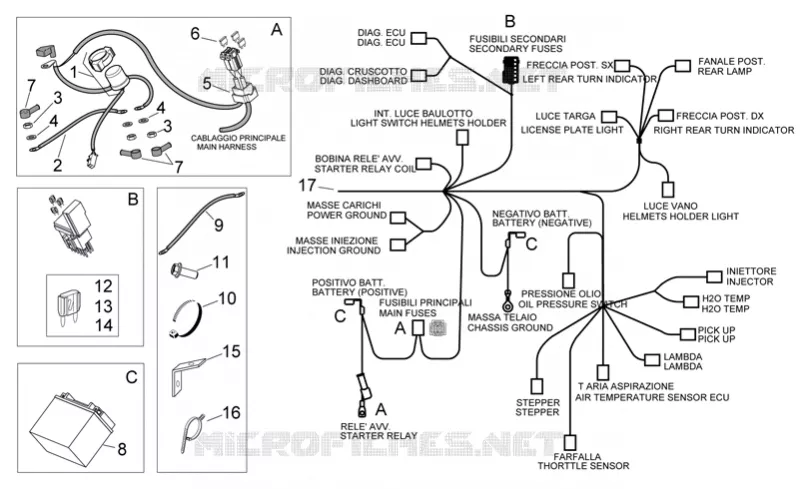

Parts Diagram
Parts Catalog
Lock hardware kit
by
Rear lights
Electrical system II
1
2
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
Relay 12V-150A
AP8112927
Not Available
2
Relay-starter motor cable
AP8127246
£36,40 Unit Price incl. VAT
3
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
4
Spring washer 6,4x11x0,5*
AP8150429
Not Available
5
Rubber fuse box
AP8112811
£11,53 Unit Price incl. VAT
6
Fuse 30A
496404
Not Available
7
Terminal cap
AP8120218
£4,01 Unit Price incl. VAT
8
Battery (Yuasa) 12V-10Ah
583158
£132,76 Unit Price incl. VAT
9
Earth cable
AP8127839
Not Available
10
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
11
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
12
Fuse
AP8176099
Not Available
13
Fuse
AP8176100
£2,02 Unit Price incl. VAT
14
Fuse 15A
AP8127345
Not Available
15
Plate
AP8154064
Not Available
16
Fairlead
AP8127841
Not Available
17
Main wiring harness
859817
Not Available
17
Main wiring harness
852860
Not Available
17
Main wiring harness
890987
Not Available
