1
Engine displacement
850
2
Model
GRISO
3
Year
2007
4
Trim
Griso V IE
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Transmission complete
by
Crank-case
Steering
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
1
Plaque sup. fourche
GU06493100
£287,48 Unit Price incl. VAT
2
Stem base
GU06494000
£796,22 Unit Price incl. VAT
3
Contre-bague
AP8123643
£27,53 Unit Price incl. VAT
4
Plaq.sécu.direction
AP8121207
£28,55 Unit Price incl. VAT
5
Bague
AP8123642
£25,34 Unit Price incl. VAT
6
Anneau pare-pouss.
AP8123644
£6,36 Unit Price incl. VAT
7
Anneau pare-pouss.
AP8123641
£13,74 Unit Price incl. VAT
8
Axial ball bearing
AP8110077
Not Available
9
Douille fx. pl. sup.;
AP8121346
£52,52 Unit Price incl. VAT
10
Rondelle bouchon fourreau
AP8152384
£2,20 Unit Price incl. VAT
11
Vis tcc M8x30
GU98700430
£7,98 Unit Price incl. VAT
12
Bague 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
13
Pla.fix.tube frein
GU05658431
£16,96 Unit Price incl. VAT
14
Vis bride
AP8152298
£3,48 Unit Price incl. VAT

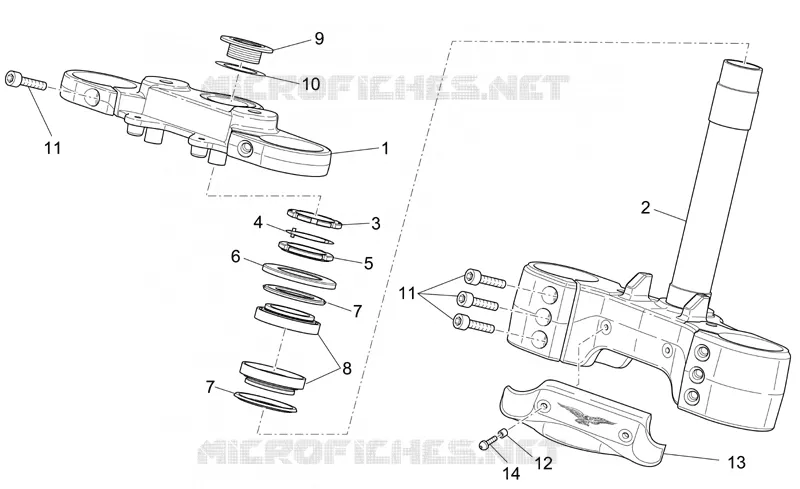

Find the detailed Steering MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
