Engine displacement
850
2
Model
GRISO
3
Year
2007
4
Trim
Griso V IE
5
Parts Catalog
Electrical system I
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Clutch
Electrical system I
1
2
3
4
4
5
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Main wiring harness
978150
£963,56 Unit Price incl. VAT
1
Main wiring harness
GU06747100
£167,29 Unit Price incl. VAT
2
ECU
977298
£1 295,26 Unit Price incl. VAT
3
Bush
GU05729230
£10,75 Unit Price incl. VAT
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
6
T bush
AP8221023
£1,64 Unit Price incl. VAT
7
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
8
HT coil
GU30716500
£206,63 Unit Price incl. VAT
9
Coil holder
GU05716730
£8,18 Unit Price incl. VAT
10
Hex socket screw
GU98682125
£1,20 Unit Price incl. VAT
11
Washer 4,3x8x0,5
GU95008204
£0,64 Unit Price incl. VAT
12
Nut M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
13
HT wire
GU06718300
£62,62 Unit Price incl. VAT
14
Sparkplug cap
GU03717450
£16,90 Unit Price incl. VAT
15
Cap
GU14717600
£3,04 Unit Price incl. VAT
16
Spark plug NGK BPR6ES
GU30717061
£8,90 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
18
Inclination sensor
AP8124266
Not Available
19
Rubber sensor support
AP8144046
Not Available
20
Phase/revolution sensor
GU01721600
£331,45 Unit Price incl. VAT
21
O-ring
GU90706141
Not Available
22
Gasket
GU01722703
£2,65 Unit Price incl. VAT
22
Gasket 1 mm
GU01722704
£2,64 Unit Price incl. VAT
22
Gasket 0,3 mm
GU01722700
£2,65 Unit Price incl. VAT
22
Gasket 0,5 mm
GU29722760
£2,65 Unit Price incl. VAT
22
Gasket 0,4 mm
GU01722701
£2,65 Unit Price incl. VAT
22
Gasket 0,6 mm
GU01722702
£2,65 Unit Price incl. VAT
22
Gasket 1,5 mm
GU01722705
£2,65 Unit Price incl. VAT
23
Hex socket screw M5x12
GU98682212
£1,06 Unit Price incl. VAT
24
Washer 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
25
Oil temperature sensor
GU29729461
£149,87 Unit Price incl. VAT
26
Sensor support
GU03163330
£68,51 Unit Price incl. VAT
27
Washer 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
28
Hose clamp 3,6x375
GU93304390
£2,06 Unit Price incl. VAT
28
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
28
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
29
Fairlead
AP8121475
£4,61 Unit Price incl. VAT
30
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
31
Hose clamp
GU06609600
£2,39 Unit Price incl. VAT

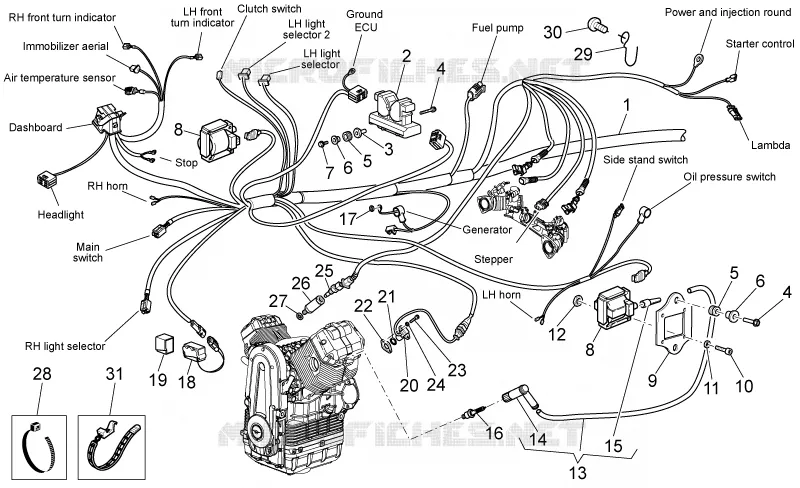

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
