Engine displacement
850
2
Model
GRISO
3
Year
2007
4
Trim
Griso V IE
5
Parts Catalog
Trans.cpl.-Cage
6

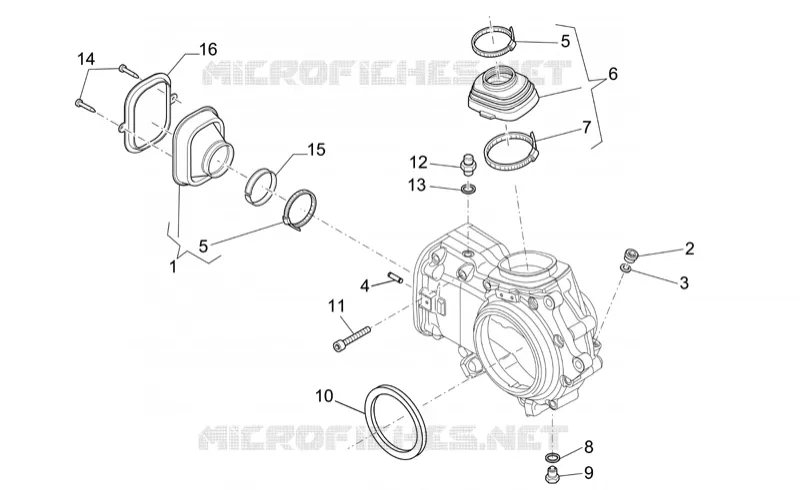

Parts Diagram
Parts Catalog
Specific tools III
by
Transmission complete
Trans.cpl.-Cage
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
1
Upper dust cover
GU05358330
£172,86 Unit Price incl. VAT
2
Oil plug M12x1,5
GU05351230
£13,44 Unit Price incl. VAT
3
Washer
GU90718120
£2,35 Unit Price incl. VAT
4
Pin 6x20
GU95510620
£6,06 Unit Price incl. VAT
5
Hose clamp
GU05358130
£11,05 Unit Price incl. VAT
6
Upper dust cover
GU05358030
Not Available
7
Hose clamp
GU05358230
£15,18 Unit Price incl. VAT
8
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
9
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
10
Gasket ring 85x110x8BASL
GU90408511
£98,57 Unit Price incl. VAT
11
Hex socket screw M8x50
GU98680450
£1,54 Unit Price incl. VAT
12
Breather plug
GU05206530
£62,71 Unit Price incl. VAT
13
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
14
screw M3,9x6,5
GU99210406
£2,47 Unit Price incl. VAT
15
Ring
GU05358530
£14,50 Unit Price incl. VAT
16
Gasket
GU05358630
£45,85 Unit Price incl. VAT
