Engine displacement
850
2
Model
GRISO
3
Year
2007
4
Trim
Griso V IE
5
Parts Catalog
Blow-by system
6
Parts Diagram
Parts Catalog
Frame
by
Headlight/Horn
Blow-by system
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
14
15
15
16
17
17
1
Corp
GU06153400
£57,65 Unit Price incl. VAT
2
Plaquette
GU06412300
£14,28 Unit Price incl. VAT
3
Caoutchouc
AP8120030
£1,38 Unit Price incl. VAT
4
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
5
Vis bride
AP8152277
£1,88 Unit Price incl. VAT
6
Entretoise
GU06164630
£15,37 Unit Price incl. VAT
7
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
8
Tuyau reniflard radiateur
GU06157600
£18,97 Unit Price incl. VAT
9
COLLIER
GU28157750
£6,04 Unit Price incl. VAT
10
Pipe
GU06159300
Not Available
11
Reduction
GU01161331
£18,25 Unit Price incl. VAT
12
Garniture
GU01154230
£2,34 Unit Price incl. VAT
13
Collier clic, blanc
AP8102765
£6,40 Unit Price incl. VAT
14
Tuyau reniflard radiateur
GU00823955080
£35,99 Unit Price incl. VAT
15
Collier clic
AP8102764
£3,25 Unit Price incl. VAT
16
Collier serr. Tube
AP8102520
£2,08 Unit Price incl. VAT
17
Collier
AP8201358
£0,60 Unit Price incl. VAT

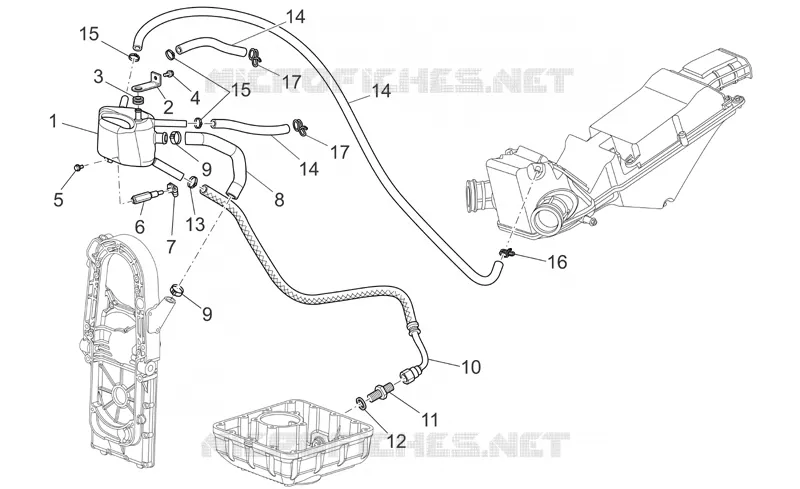

Find the detailed Blow-by system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
