Engine displacement
1200
2
Model
GRISO
3
Year
2015
4
Trim
Griso S.E. 8V E3
5
Parts Catalog
Timing system
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Rear brake caliper
Timing system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Distribution Shaft
976330
£430,74 Unit Price incl. VAT
2
Needle Bearing
976381
£24,68 Unit Price incl. VAT
3
ANELLO OR 37,82X1,78
976488
£2,47 Unit Price incl. VAT
4
Flange
976331
£71,00 Unit Price incl. VAT
5
Screw
GU98350315
£1,26 Unit Price incl. VAT
6
DOUBLE SIDE SHIELDED BEARING
976355
£74,68 Unit Price incl. VAT
7
Screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
8
WASHER
873928
£10,54 Unit Price incl. VAT
9
SPACER
976334
£15,76 Unit Price incl. VAT
10
Drive Wheel
976538
£103,57 Unit Price incl. VAT
11
GEAR FOR TIMING DRIVE CAM SHAFT
874281
£86,53 Unit Price incl. VAT
12
Washer 19X34X1.5
GU14433400
£1,02 Unit Price incl. VAT
13
Nut for securing front pulley assy.
829232
£4,69 Unit Price incl. VAT
14
ROUND SPLINE
887044
£7,78 Unit Price incl. VAT
15
Drive gear
874799
Not Available
16
DISC SPRING
976665
£17,94 Unit Price incl. VAT
17
NUT FOR CRANKSHAFT
976649
£21,32 Unit Price incl. VAT
18
TIMING PINION
874280
£55,38 Unit Price incl. VAT
19
Transmission Key 3X6,5
GU91600365
£7,20 Unit Price incl. VAT

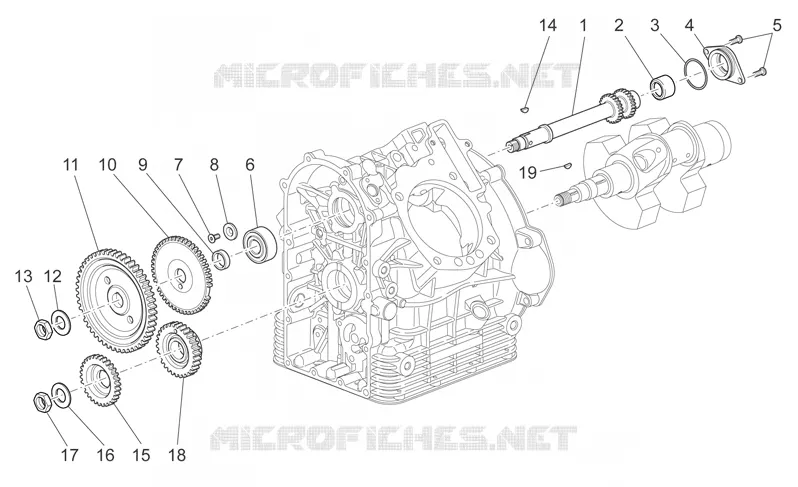

Find the detailed Timing system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
