Engine displacement
1200
2
Model
GRISO
3
Year
2015
4
Trim
Griso S.E. 8V E3
5
Parts Catalog
Front fork
6

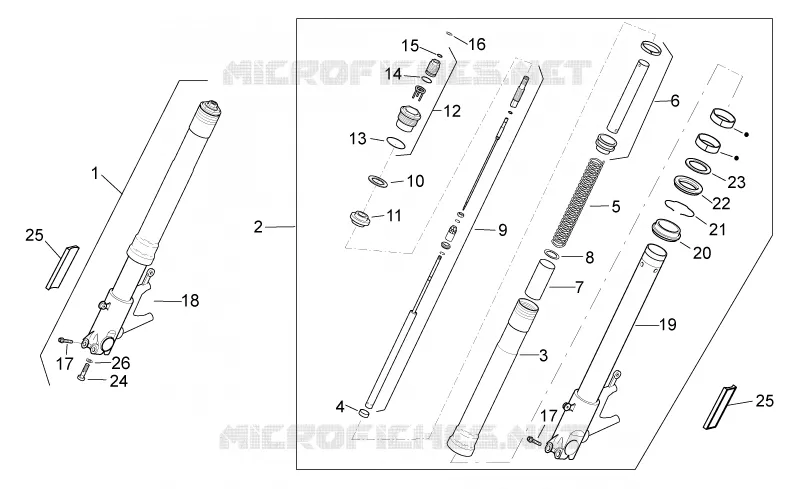

Parts Diagram
Parts Catalog
Transmission cage
by
Plate set-decal-op.handbooks
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
25
26
1
RH radial sleeve
978160
£1 552,63 Unit Price incl. VAT
2
LH radial sleeve
978159
£1 954,15 Unit Price incl. VAT
3
Sleeve
978487
Not Available
4
Plunger attachment bush
AP8123810
£15,16 Unit Price incl. VAT
5
Spring
AP8163495
£10,58 Unit Price incl. VAT
6
Preload tube cpl.
AP8123832
£166,84 Unit Price incl. VAT
7
Spacer
AP8123835
£15,16 Unit Price incl. VAT
8
Washer
AP8123836
£7,91 Unit Price incl. VAT
9
Plunger, complete
AP8163496
Not Available
10
Washer
AP8123816
£12,65 Unit Price incl. VAT
11
Ring
AP8123815
£15,16 Unit Price incl. VAT
12
Sleeve plug cpl.
AP8123817
Not Available
13
O-ring
AP8123834
£7,74 Unit Price incl. VAT
14
O-ring
AP8123819
£15,16 Unit Price incl. VAT
15
O-ring
AP8123820
£15,16 Unit Price incl. VAT
16
Stop ring
AP8123821
£12,65 Unit Price incl. VAT
17
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
18
RH hub cpl.
978456
£707,09 Unit Price incl. VAT
19
LH hub cpl.
978455
£722,80 Unit Price incl. VAT
20
Dust cover
AP8123824
£34,81 Unit Price incl. VAT
21
Circlip
981013
Not Available
22
Oil seal
AP8123825
£32,47 Unit Price incl. VAT
23
Ring
981012
Not Available
24
screw M10x1,5
AP8123812
£24,38 Unit Price incl. VAT
25
Reflector, amber
GU05781630
£18,60 Unit Price incl. VAT
26
Special washer
AP8123811
£12,65 Unit Price incl. VAT
