Engine displacement
1200
2
Model
GRISO
3
Year
2009
4
Trim
Griso 8V E3
5
Parts Catalog
Lateral stand
6
Parts Diagram
Parts Catalog
by
Throttle body
Lateral stand
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Lateral stand
977067
£182,12 Unit Price incl. VAT
2
Lever
GU06431900
£66,43 Unit Price incl. VAT
3
Gasket
GU06431700
£1,87 Unit Price incl. VAT
4
T bush
AP8121795
£2,63 Unit Price incl. VAT
5
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
6
Stand plate
977065
£289,37 Unit Price incl. VAT
7
Coil pull spring
AP8121014
£3,71 Unit Price incl. VAT
8
Lateral stand spring
AP8221197
£5,62 Unit Price incl. VAT
9
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
10
Screw w/ flange
AP8152473
£7,08 Unit Price incl. VAT
11
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
12
Central stand fixing screw
AP8121607
£7,48 Unit Price incl. VAT
13
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
14
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
15
Button for side stand
639542
£30,10 Unit Price incl. VAT
16
Hex socket screw
GU98612220
£1,20 Unit Price incl. VAT
17
Self-locking nut M5
AP8152306
Not Available
18
Thermal sheath
GU00823923140
£45,62 Unit Price incl. VAT
19
Fairlead
GU06765500
£25,72 Unit Price incl. VAT
20
Cable-guide
AP8121882
£6,35 Unit Price incl. VAT

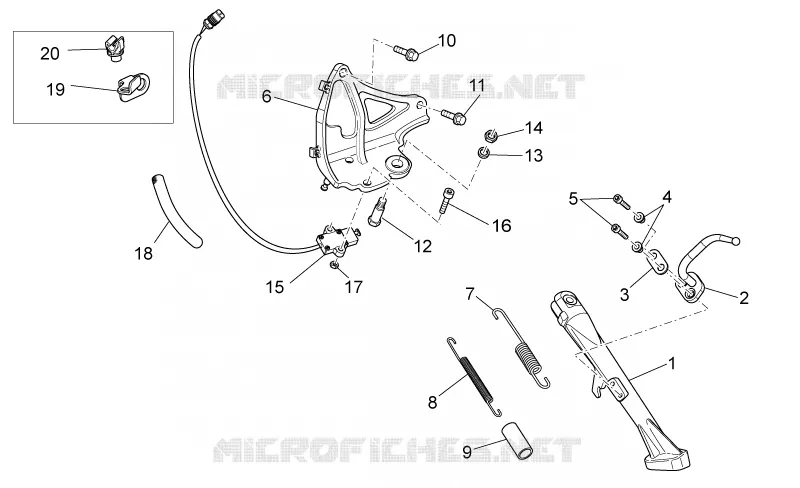

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Griso 8V E3

Lateral stand
