Engine displacement
1200
2
Model
GRISO
3
Year
2009
4
Trim
Griso 8V E3
5
Parts Catalog
Foot rests II
6
Parts Diagram
Parts Catalog
Gear lever
by
Front mudguard
Foot rests II
1
2
2
3
3
3
3
4
4
4
5
5
5
5
6
7
8
8
9
10
11
12
12
13
13
14
15
15
15
15
16
17
17
18
1
RH plate
977052
£332,29 Unit Price incl. VAT
2
Screw M8x75
GU98700475
£13,52 Unit Price incl. VAT
3
Spacer 8,2x14x49,5
AP8121805
£4,28 Unit Price incl. VAT
4
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
5
Screw M8x30
GU98700430
£7,98 Unit Price incl. VAT
6
LH plate
977053
£332,29 Unit Price incl. VAT
7
RH protection
GU06445900
£57,18 Unit Price incl. VAT
8
Screw
GU98710215
£2,35 Unit Price incl. VAT
9
LH protection
GU06445901
£57,18 Unit Price incl. VAT
10
LH footrest support
GU06446000
£155,36 Unit Price incl. VAT
11
LH protection
GU06447501
£28,99 Unit Price incl. VAT
12
Ring
GU05446431
£28,32 Unit Price incl. VAT
13
Hex socket screw
GU98350210
£1,26 Unit Price incl. VAT
14
RH foot rest support
GU06443500
£191,16 Unit Price incl. VAT
15
Screw M10x30
GU98700530
£10,73 Unit Price incl. VAT
16
RH protection
GU06447500
£28,99 Unit Price incl. VAT
17
Hex socket screw M4x12
GU98370412
£1,26 Unit Price incl. VAT
18
Cable-guide
AP8120428
£26,03 Unit Price incl. VAT

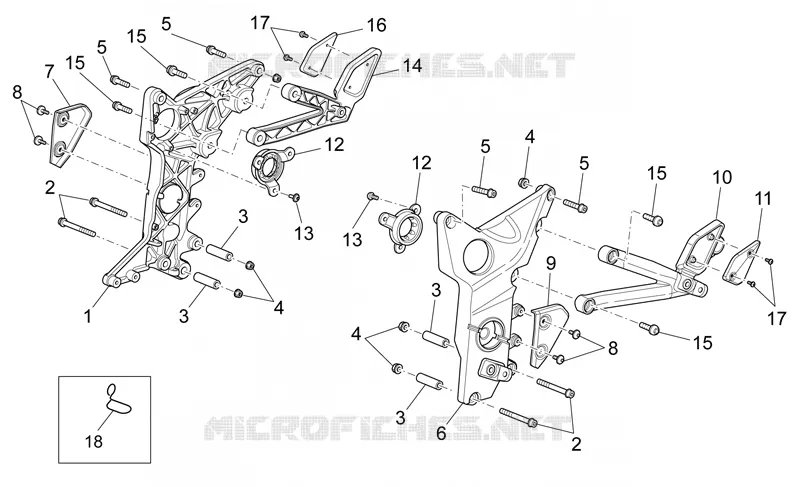

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
