1
SAS valve
855054
£161,70 Unit Price incl. VAT
2
Hose clamp
AP8102766
£1,88 Unit Price incl. VAT
3
RH pipe "S.A.S."
2B002265
£16,67 Unit Price incl. VAT
4
LH pipe "S.A.S."
2B002266
£16,67 Unit Price incl. VAT
5
Air hose
2B002102
£14,46 Unit Price incl. VAT
6
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
7
Spring clamp 19/12
CM226902
£1,42 Unit Price incl. VAT
8
Support bracket "S.A.S."
2B002289
£83,59 Unit Price incl. VAT
9
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
10
Plastic rivet
AP8102671
£0,29 Unit Price incl. VAT
11
Mushroom rubber
AP8220488
£0,29 Unit Price incl. VAT
12
SAS valve
857181
£96,67 Unit Price incl. VAT
13
Self-tap screw 3,3x16
AP8150512
£0,14 Unit Price incl. VAT
14
"S.A.S." box pipe
2B002101
£16,73 Unit Price incl. VAT
15
Air filter
2B002314
£12,07 Unit Price incl. VAT
16
Secondary air box cpl.
2B002322
£72,16 Unit Price incl. VAT
17
Design cover
2B002262
£35,82 Unit Price incl. VAT
18
Valve support clamp "S.A.S."
2B002139
£96,16 Unit Price incl. VAT
19
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
20
Spring plate M6
254485
£1,64 Unit Price incl. VAT
21
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
22
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
23
RH "S.A.S." metallic tube
2B002451
£60,14 Unit Price incl. VAT
24
LH "S.A.S." metallic tube
2B002082
£60,14 Unit Price incl. VAT
25
Cover
487567
£4,13 Unit Price incl. VAT
26
Nut
855028
£17,05 Unit Price incl. VAT
27
Secondary air system fitting
2A000486
£15,32 Unit Price incl. VAT

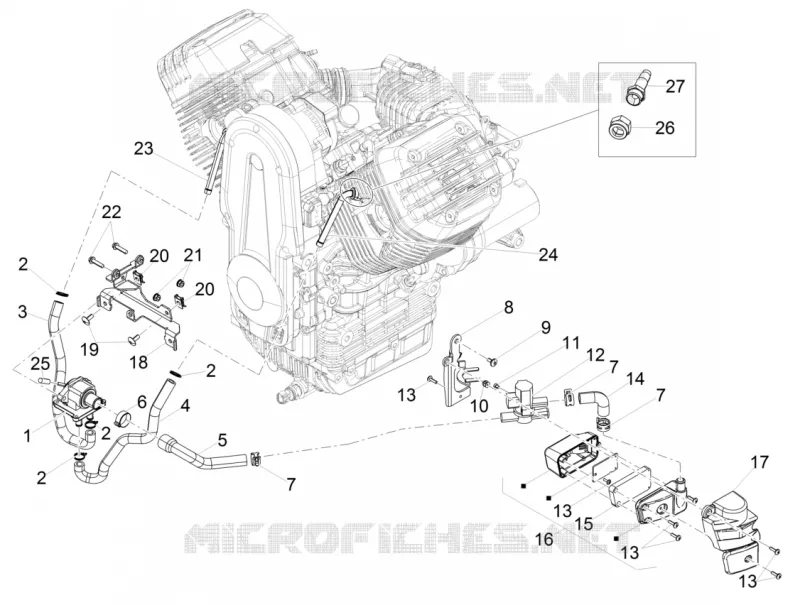

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
