Engine displacement
1400
2
Model
ELDORADO
3
Year
2017
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Rear mudguard
6

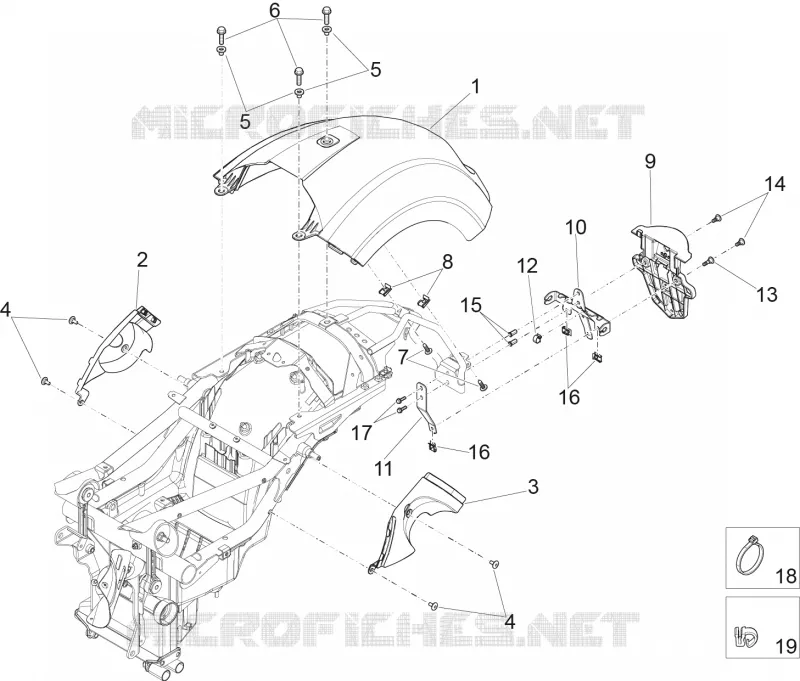

Parts Diagram
Parts Catalog
Cylinder - Piston
by
Central electrical system
Rear mudguard
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
1
Rear mudguard, black
2H000712000XN5
£558,82 Unit Price incl. VAT
2
RH shock absorber cover
2B001821000XN5
£64,49 Unit Price incl. VAT
3
LH shock absorber cover
2B001820000XN5
£64,49 Unit Price incl. VAT
4
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
5
T bush *
AP8121114
£4,49 Unit Price incl. VAT
6
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
7
Screw w/ flange M6x16 inox
GU98210616
£3,95 Unit Price incl. VAT
8
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Support bracket
2B002230
£22,20 Unit Price incl. VAT
10
Number plate support
2B002231
£41,63 Unit Price incl. VAT
11
Fixture rod
2B002410
£34,45 Unit Price incl. VAT
12
Elastic spring
231590
£0,60 Unit Price incl. VAT
13
Screw w/ flange M5x12
AP8152302
Not Available
14
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
15
Threaded rivet
AP8201755
£6,38 Unit Price incl. VAT
16
Spring plate M5
248419
£2,00 Unit Price incl. VAT
17
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
18
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
19
Black cable guide
AP8201727
£1,14 Unit Price incl. VAT
