Engine displacement
1400
2
Model
ELDORADO
3
Year
2016
4
Trim
Eldorado E3 ABS
5
Parts Catalog
Crankcases I
6

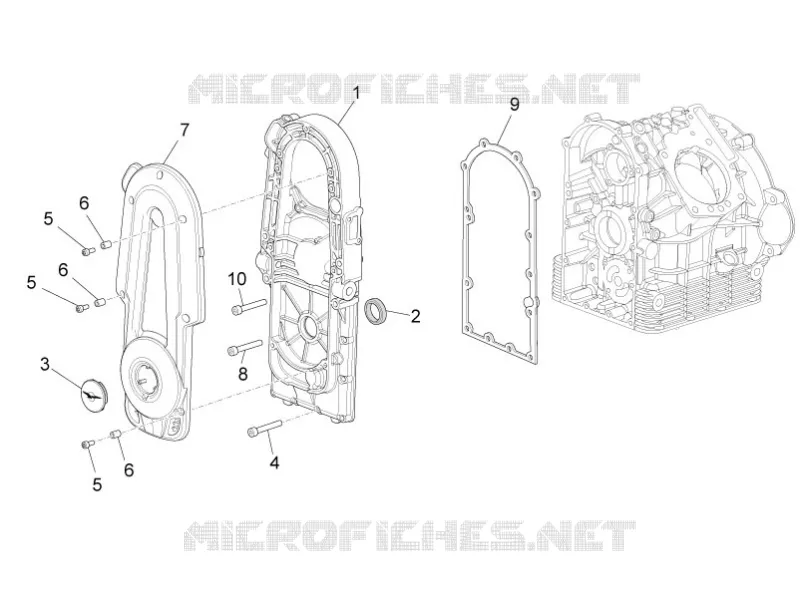

Parts Diagram
Parts Catalog
Saddle compartment
by
Gear box - Gear assembly
Crankcases I
1
2
3
4
5
5
5
6
6
6
7
8
9
10
1
Timing system cover
976631
£240,52 Unit Price incl. VAT
2
Gasket ring 22x35x7viton
GU90412237
£30,26 Unit Price incl. VAT
3
Cover
GU05002130
£16,09 Unit Price incl. VAT
4
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
5
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
6
Bushing 6,8x8,8x5,8
GU91120606
£5,24 Unit Price incl. VAT
7
Alternator cover grey
GU05001630
£32,03 Unit Price incl. VAT
8
screw
GU98620330
£0,49 Unit Price incl. VAT
9
Cover gasket
976478
£26,94 Unit Price incl. VAT
10
Hex socket screw M8x55
GU98620455
£1,58 Unit Price incl. VAT
