Engine displacement
1400
2
Model
ELDORADO
3
Year
2016
4
Trim
Eldorado E3 ABS
5
Parts Catalog
Timing system
6
Parts Diagram
Parts Catalog
Blow-by system
by
Locks
Timing system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Timing system
976330
£430,74 Unit Price incl. VAT
2
Roller cage 25x32x12
976381
£24,68 Unit Price incl. VAT
3
O-ring 37,82x1,78
976488
£2,47 Unit Price incl. VAT
4
Flange
976331
£71,00 Unit Price incl. VAT
5
Hex socket screw M6x14
GU98350315
£1,26 Unit Price incl. VAT
6
Ball bearing 20x47x18
976355
£74,68 Unit Price incl. VAT
7
screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
8
Washer
873928
£10,54 Unit Price incl. VAT
9
Spacer
887524
£21,22 Unit Price incl. VAT
10
Phonic wheel
887030
£37,88 Unit Price incl. VAT
11
Gear kit
85269R
£337,26 Unit Price incl. VAT
12
Spring washer 19x34x1,5
GU14433400
£1,02 Unit Price incl. VAT
13
Nut M18x1,5
829232
£4,69 Unit Price incl. VAT
14
Tab 4x5
887044
£7,78 Unit Price incl. VAT
15
Transmission key 3x6,5
GU91600365
£7,20 Unit Price incl. VAT
16
Belleville spring
976665
£17,94 Unit Price incl. VAT
17
Nut M25x1,5
976649
£21,32 Unit Price incl. VAT

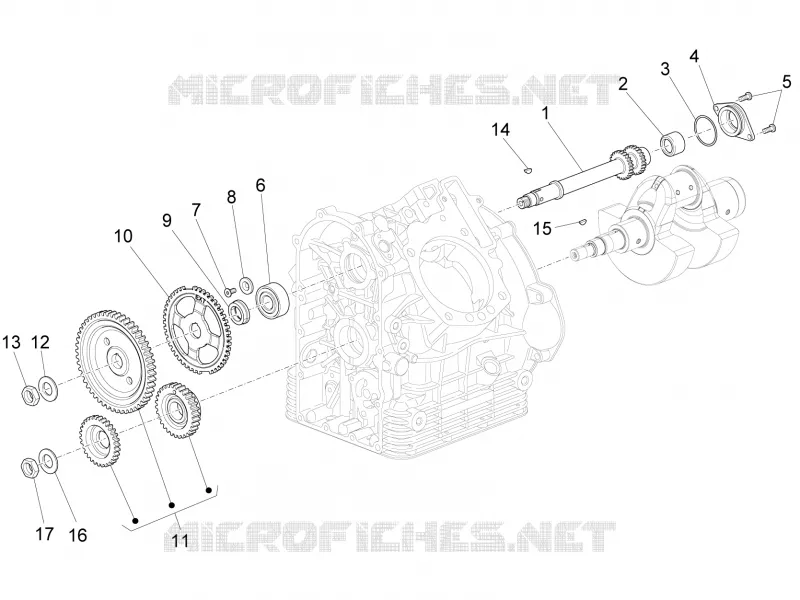

Find the detailed Timing system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
