Air box for Audace Carbon from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Air box

1

Filter box upper shell

886859

£22,72 Unit Price incl. VAT

2

Air filter

AP8104329

£14,45 Unit Price incl. VAT

3

Filter support

886867

£15,91 Unit Price incl. VAT

4

Phillips screw, SWP M5x20

AP8152329

£1,80 Unit Price incl. VAT

5

Intake hose

886861

£11,74 Unit Price incl. VAT

6

Spring

622236

£10,20 Unit Price incl. VAT

7

Filter box lower shell

886860

£22,55 Unit Price incl. VAT

8

Gasket D3

AP8120615

£2,59 Unit Price incl. VAT

9

Blow-by filter

B063477

£7,27 Unit Price incl. VAT

10

Washer

567603

£0,24 Unit Price incl. VAT

11

Washer for shafts D5

AP8150450

£2,20 Unit Price incl. VAT

12

Filter box sleeve

886871

£15,49 Unit Price incl. VAT

13

Hose clamp D76

B063957

£10,44 Unit Price incl. VAT

14

Clamp 70x90x9

GU93306070

£15,71 Unit Price incl. VAT

15

Screw w/ flange M6x25

AP8152280

£2,48 Unit Price incl. VAT

16

T bush

AP8221023

£1,64 Unit Price incl. VAT

17

Rubber spacer

AP8120030

£1,38 Unit Price incl. VAT

18

Spring plate M6

254485

£1,64 Unit Price incl. VAT

19

Hose clamp D10,1

AP8101595

£3,97 Unit Price incl. VAT

20

Fuel pipe 6x10

AP8144038

£38,70 Unit Price incl. VAT

21

Plug

AP8120876

£8,23 Unit Price incl. VAT

22

Screw w/ flange M6x20

AP8152279

£1,87 Unit Price incl. VAT

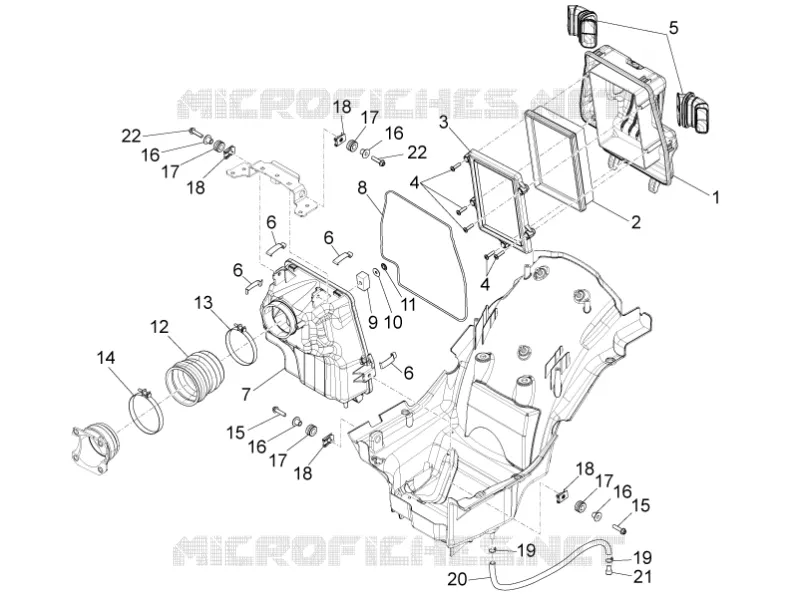

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
