Secondary air for Audace Carbon from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Secondary air

1

SAS valve

855054

£161,70 Unit Price incl. VAT

2

Hose clamp

AP8102766

£1,88 Unit Price incl. VAT

3

RH pipe "S.A.S."

2B002265

£16,67 Unit Price incl. VAT

4

LH pipe "S.A.S."

2B002266

£16,67 Unit Price incl. VAT

5

Air hose

2B002102

£14,46 Unit Price incl. VAT

6

Hose clip D25x8,6

AP8101722

£7,85 Unit Price incl. VAT

7

Spring clamp 19/12

CM226902

£1,42 Unit Price incl. VAT

8

Support bracket "S.A.S."

2B002289

£83,59 Unit Price incl. VAT

9

Hex socket screw M5x9

AP8150500

£2,18 Unit Price incl. VAT

10

Plastic rivet

AP8102671

£0,29 Unit Price incl. VAT

11

Mushroom rubber

AP8220488

£0,29 Unit Price incl. VAT

12

SAS valve

857181

£96,67 Unit Price incl. VAT

13

Self-tap screw 3,3x16

AP8150512

£0,14 Unit Price incl. VAT

14

"S.A.S." box pipe

2B002101

£16,73 Unit Price incl. VAT

15

Air filter

2B002314

£12,07 Unit Price incl. VAT

16

Secondary air box cpl.

2B002322

£72,16 Unit Price incl. VAT

17

Design cover

2B002262

£35,82 Unit Price incl. VAT

18

Valve support clamp "S.A.S."

2B002139

£96,16 Unit Price incl. VAT

19

Hex socket screw M6x16 inox

GU98370616

£2,48 Unit Price incl. VAT

20

Spring plate M6

254485

£1,64 Unit Price incl. VAT

21

Self-locking nut M6

AP8152299

£1,88 Unit Price incl. VAT

22

Screw w/ flange M6x25

AP8152280

£2,48 Unit Price incl. VAT

23

RH "S.A.S." metallic tube

2B002451

£60,14 Unit Price incl. VAT

24

LH "S.A.S." metallic tube

2B002082

£60,14 Unit Price incl. VAT

25

Cover

487567

£4,13 Unit Price incl. VAT

26

Nut

855028

£17,05 Unit Price incl. VAT

27

Secondary air system fitting

2A000486

£15,32 Unit Price incl. VAT

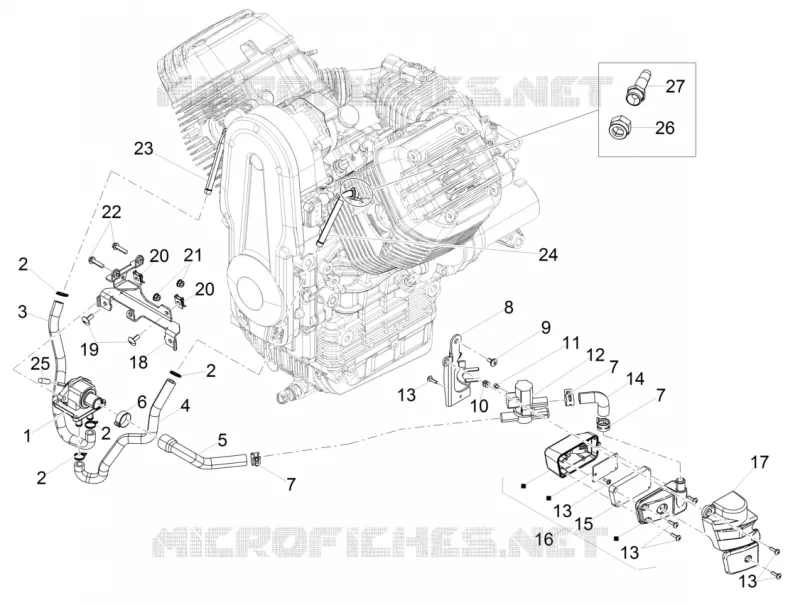

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
