Engine displacement
125
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light Carb.
5
Parts Catalog
Oil pump
6

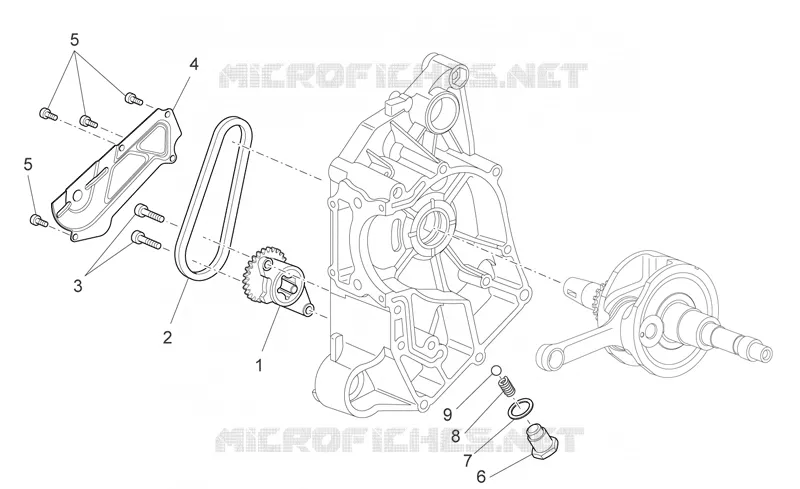

Parts Diagram
Parts Catalog
Water pump
by
Undersaddle
Oil pump
1
2
3
4
5
5
6
7
8
9
1
Oil pump assy.
AP1IBA000843
£84,18 Unit Price incl. VAT
2
Oil pump chain
AP2ICA000319
Not Available
3
Hex socket screw
AP4ADN000286
Not Available
4
Oil bulhead
AP3IBA000317
£23,86 Unit Price incl. VAT
5
Hex socket screw
AP4ADN000287
Not Available
6
Cover
AP3IDA000735
£12,70 Unit Price incl. VAT
7
Gasket 18X24X1
AP2DEN000135
£0,70 Unit Price incl. VAT
8
Spring
AP3IDA000525
£1,16 Unit Price incl. VAT
9
Ball
AP3IDA000524
£2,33 Unit Price incl. VAT
